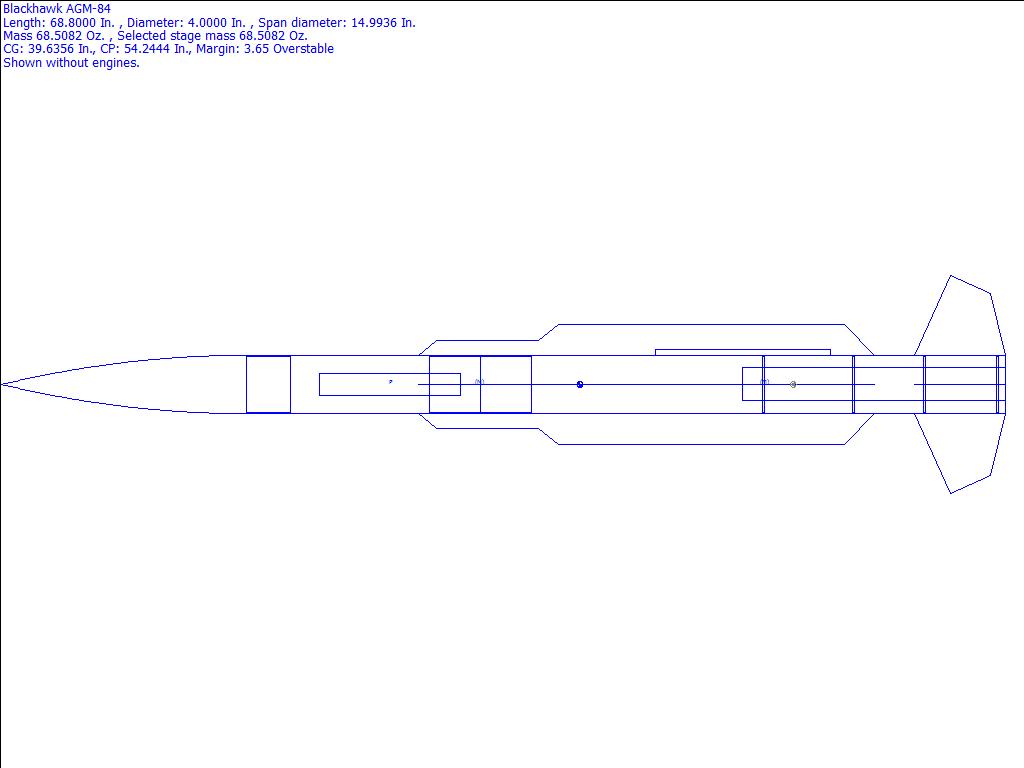

Blackhawk R&D AGM84 Standard ARM (54mm) Rocksim Design File

Comments: Based on actual dimensions of completed model. Both sets of fins have thru the wall tabs to the motor tube as defined by the centering rings. The two sections of body tubes are coupled with a tube coupler and the tube coupler is glued to both. A U-bolt in the forward centering ring is used for shock cord retention via a quick link connector. Fins are beveled on all edges except where attached to body tube.

Download oop_blackhawk_agm_84_standard_arm_54mm.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 39.6356 inches from front
CP: 54.2444 inches from front
Margin: 3.65 Overstable

Parts Breakdown

• Blackhawk R&D AGM84 Standard ARM Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 16.00 in]
• Public Missiles Ltd. CT-3.90 Ring
• LOC/Precision Rip stop nylon Parachute (57.87 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 36.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• LOC Precision LOC CR-3.9-2.14 Ring
• LOC Precision LOC CR-3.9-2.14 Ring
• LOC Precision LOC CR-3.9-2.14 Ring
• LOC Precision LOC CR-3.9-2.14 Ring
• Public Missiles HDWE-UBOLT-SET Ubolt for FNCs Mass Object
• Blackhawk R&D AGM84 Standard ARM Freeform Fin Set
• Blackhawk R&D AGM84 Standard ARM Freeform Fin Set
• Public Missiles LL-0.38 Launch Lug
• LOC Precision SCTN-20 Tubular Nylon 9/16 In x 20 Ft Mass Object
