AGM-88A HARM Rocksim Design File

• Manufacturer: Scratch

Download scratch_harmagm_88a40percent.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

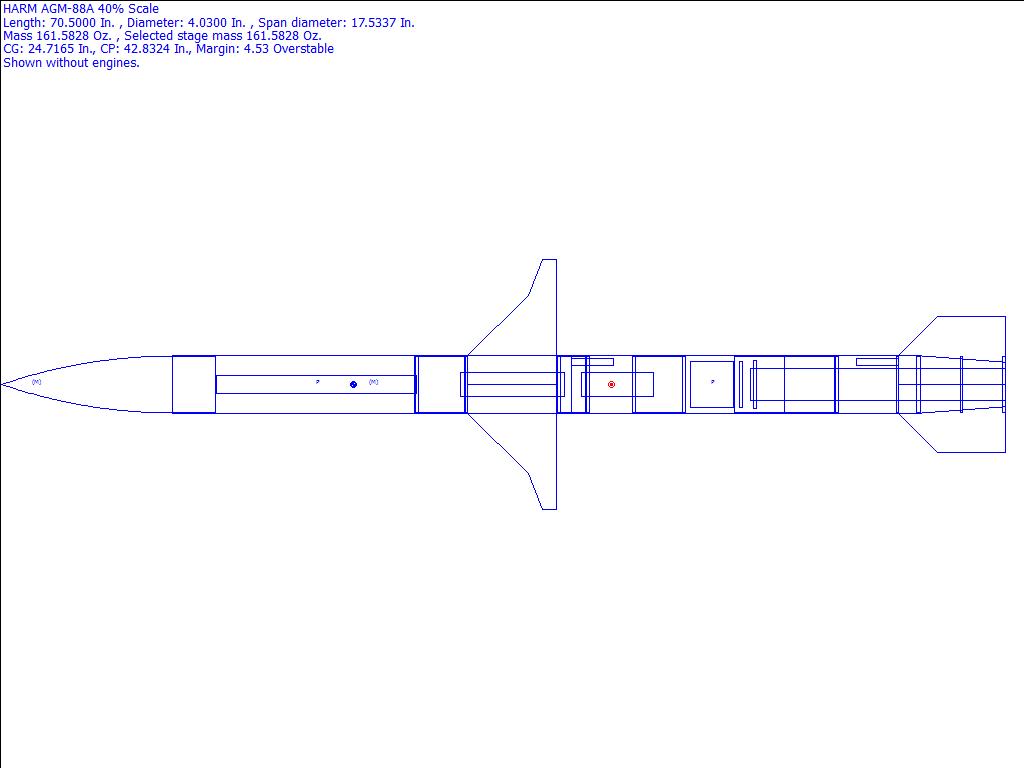

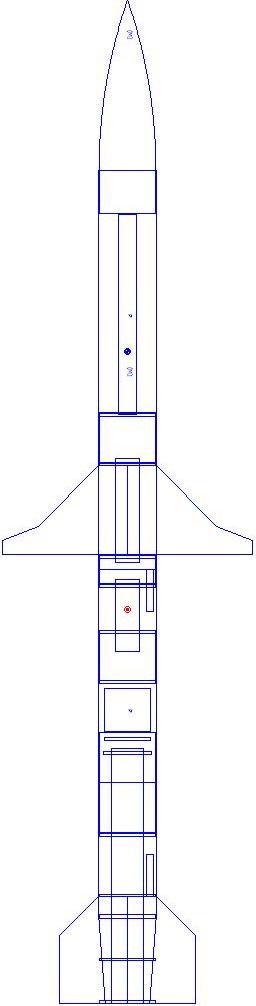

Kit Name: Scratch - AGM-88A HARM {Scratch}

CG: 24.7165 inches from front
CP: 42.8324 inches from front
Margin: 4.53 Overstable

Parts Breakdown

• AGM-88A HARM Ogive Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 28.00 in]
• Public Missiles CR-3.9-2.1 Ring
• Public Missiles Ltd. CT-3.90 Ring
• Public Missiles Rip stop nylon Parachute (84.00 in)
• Custom Mass Object
• Public Missiles CBP-3.9 Ring
• Public Missiles Ltd. CT-3.90 Ring
• Public Missiles CR-3.9-1.5 Ring
• AGM-88A HARM Freeform Fin Set Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.25 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.00 in]
• Public Missiles CR-3.9-1.5 Ring
• Public Missiles Ltd. CT-3.90 Ring
• Public Missiles CBP-3.9 Ring
• Public Missiles Rip stop nylon Parachute (18.00 in)
• Public Missiles LL-0.50 Launch Lug
• Public Missiles CR-3.9-1.5 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.50 in]
• Public Missiles CBP-3.9 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.90 in]
• AGM-88A HARM Freeform Fin Set Freeform Fin Set
• Custom Ring
• Public Missiles CR-3.9-2.1 Ring
• Public Missiles LL-0.50 Launch Lug
• Public Missiles CR-3.9-2.1 Ring
• Public Missiles CR-3.9-2.1 Ring
• Public Missiles Ltd. CT-3.90 Ring
• Public Missiles CR-3.0-2.1 Ring
• Public Missiles Conical Transition
