AGM-88 HARM Rocksim Design File

• Manufacturer: Scratch

Comments: 4/10 Scale - Electronic Ejection Only

Designer: Terry L. Markovich

Download scratch_agm_88harm.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

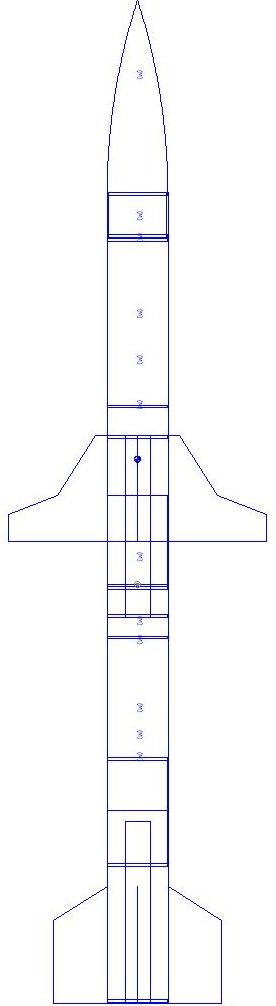

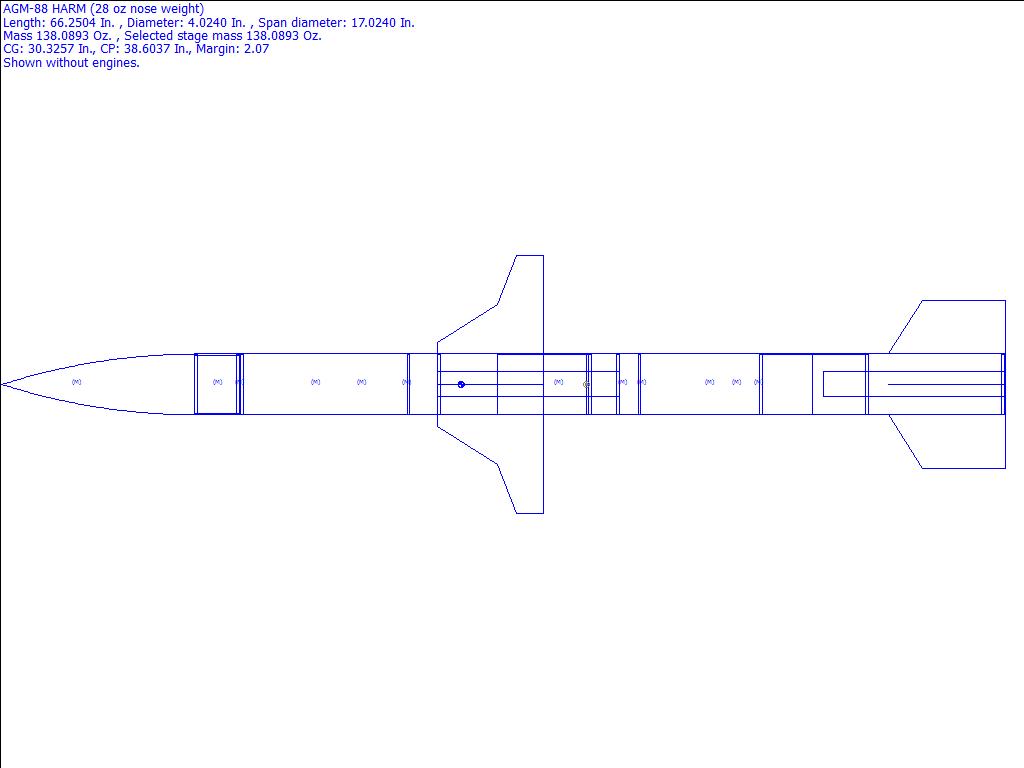

Kit Name: Scratch - AGM-88 HARM {Scratch}

CG: 30.3257 inches from front
CP: 38.6037 inches from front
Margin: 2.07

Parts Breakdown

• AGM-88 HARM Ogive Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 23.00 in]
• Public Missiles PML BP-06 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Public Missiles PML P6 Altimeter Mass Object
• Custom Mass Object
• Public Missiles PML CBP-06 Ring
• Public Missiles PML CBP-06 Ring
• AGM-88 HARM Freeform Fin Set Freeform Fin Set
• Public Missiles PML Eyblt/wshr/2nuts Mass Object
• Public Missiles PML CR-13 Ring
• Custom Mass Object
• Custom Mass Object
• Public Missiles PML Eyblt/wshr/2nuts Mass Object
• Public Missiles PML BP-06 Ring
• Custom Ring
• Public Missiles PML CR-13 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.75 in]
• Public Missiles PML BP-06 Ring
• Public Missiles PML Eyblt/wshr/2nuts Mass Object
• Custom Mass Object
• Custom Mass Object
• Custom Mass Object
• Public Missiles PML CR-13 Ring
• Public Missiles PML CR-13 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.75 in]
• AGM-88 HARM Trapezoid Fin Set Trapezoid Fin Set
• Public Missiles Ltd. PML CT-3.90 Ring
• Public Missiles PML CBP-06 Ring
• Public Missiles PML Eyblt/wshr/2nuts Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Public Missiles PML CR-13 Ring
• Public Missiles PML CR-13 Ring
