SEMROC Iris Rocksim Design File

Contributed by Marlin Meyer

• Manufacturer: Semroc
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 1
• Style: Scale

Comments: KD-4 Deci-Scale

Designer: SEMROC Astronautics

Download semroc_iris.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

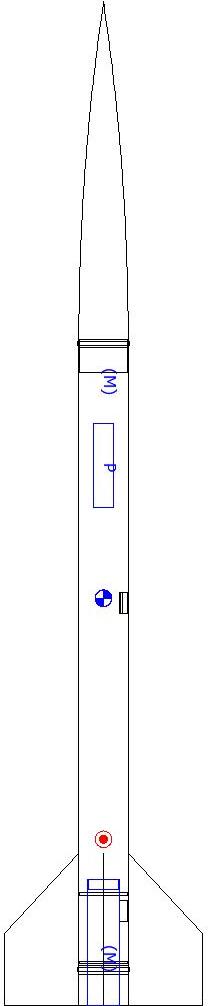

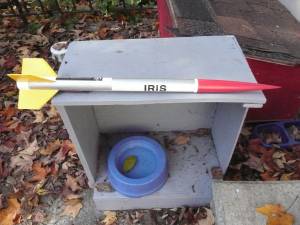

Kit Name: Semroc - Iris {Kit} (KD-4)
Diameter: 1.1700 inches
Length: 23.8000 inches
Style: Scale

CG: 14.1461 inches from front
CP: 19.8627 inches from front
Margin: 4.89 Overstable

Parts Breakdown

• SEMROC Iris Ogive Nose Cone
• Semroc SE-12 Screw Eye-Large Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.81 in]
• SEMROC Ring
• Semroc LL-105 Launch Lug
• Semroc LL-105 Launch Lug
• SEMROC Iris Freeform Fin Set Freeform Fin Set
• Custom Ring
• Custom Ring
• Semroc Ring
• Semroc Ring
• SEMROC Iris Freeform Fin Set Freeform Fin Set
• Semroc Polyethylene LDPE Parachute (12.00 in)
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• SEMROC Astronautics TR-9 Ring
• Semroc EH-28 Engine Hook Standard Mass Object
