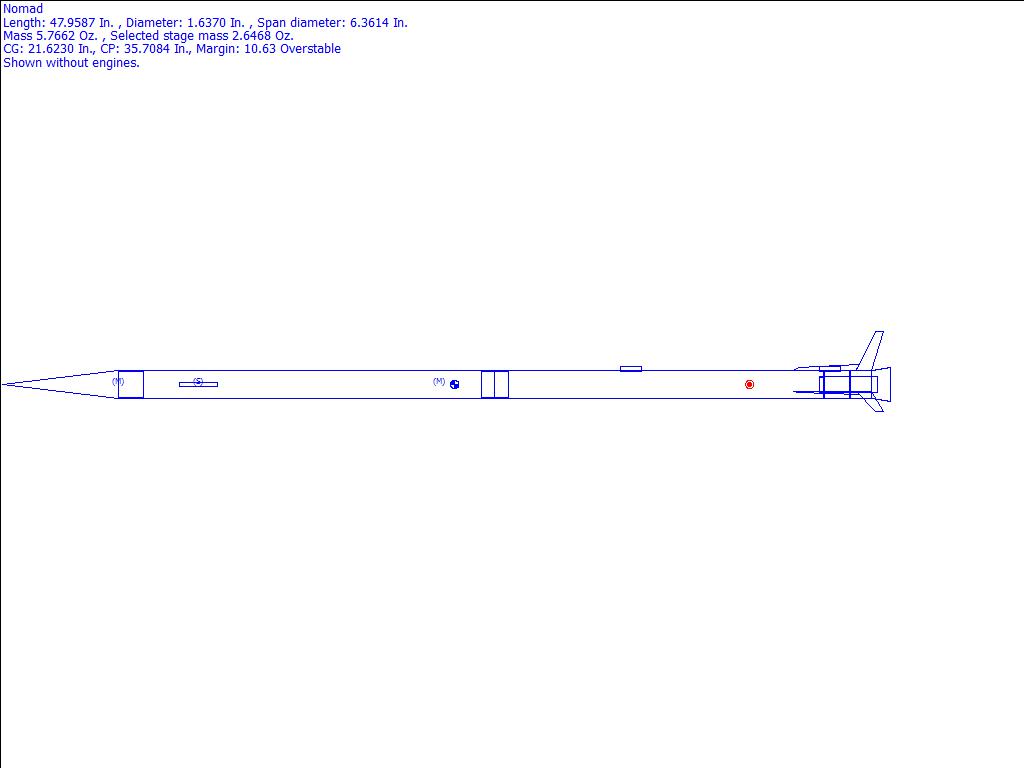

Nomad Rocksim Design File

Contributed by Joe Policy

• Manufacturer: FlisKits
• Recovery: Parachute
• Style: Multi-Stage

Designer: FlisKits

Download fliskits_nomad.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: FlisKits - Nomad {Kit}
Diameter: 1.6370 inches
Length: 47.9000 inches
Style: Multi-Stage

CG: 33.8109 inches from front
CP: 42.1035 inches from front
Margin: 6.26 Overstable

Parts Breakdown

• Nomad Conical Nose Cone
• FlisKits SE-M Screw Eye - Medium Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• FlisKits CPL-55-013 Ring
• FlisKits Paper Streamer (0.0012 in)
• FlisKits THK-24 Kevlar Thread, 24" Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• FlisKits EB-20-0025 Ring
• FlisKits CRF-20-55 Ring
• FlisKits CRF-20-55 Ring
• Nomad Trapezoid Fin Set Trapezoid Fin Set
• Nomad Freeform Fin Set Freeform Fin Set
• FlisKits LL-2-1 Launch Lug
• FlisKits LL-2-1 Launch Lug
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.50 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• FlisKits CRF-20-55 Ring
• FlisKits CRF-20-55 Ring
• FlisKits CPL-55-013 Ring
• FlisKits CRF-55-60 Ring
• FlisKits CRF-55-60 Ring
• Nomad Trapezoid Fin Set Trapezoid Fin Set
• FlisKits LL-2-1 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.75 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• FlisKits EH-0275 Engine Hook, 2.75" Mass Object
• FlisKits CRF-50-60 Ring
• FlisKits CRF-50-60 Ring
• FlisKits CPL-60-015 Ring
• Nomad Trapezoid Fin Set Trapezoid Fin Set
