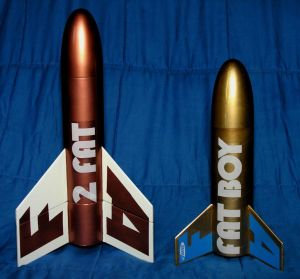

2 Fat Rocksim Design File

Contributed by Geof Givens

• Manufacturer: Modification
• Style: Multi-Stage

Comments: 2-stage 24mm D12-0 E9-4 Fatboy

Designer: Geof Givens

Download mods_fat_boy_2fat.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

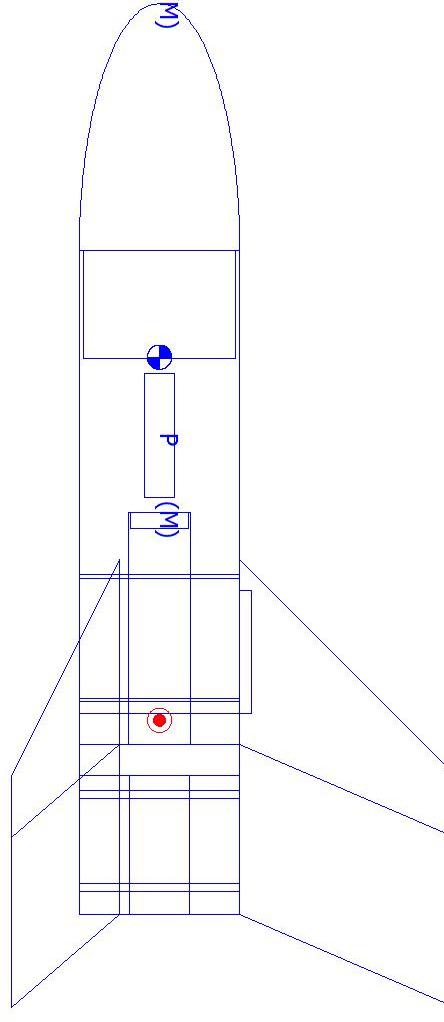

Kit Name: Modification - 2 Fat {Modification}
Style: Multi-Stage

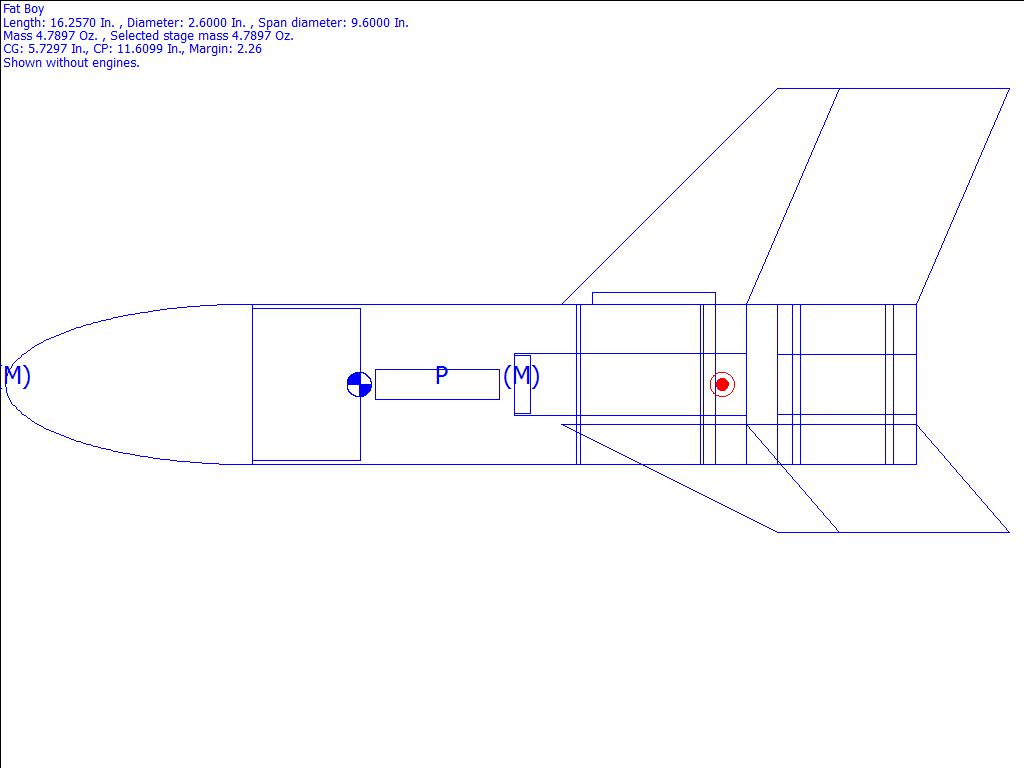

CG: 5.7297 inches from front
CP: 11.6099 inches from front
Margin: 2.26

Parts Breakdown

• Estes FatBoy Elliptical Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Fat Boy Trapezoid Fin Set Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.75 in]
• BalsaMachining.com EB24-P Ring
• Estes Polyethylene LDPE Parachute (12.00 in)
• Custom Mass Object
• Estes ESTES 2328 Launch Lug
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Fat Boy Trapezoid Fin Set Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.25 in]
• Estes JT-5C Estes Ring
• Custom Ring
• Custom Ring
