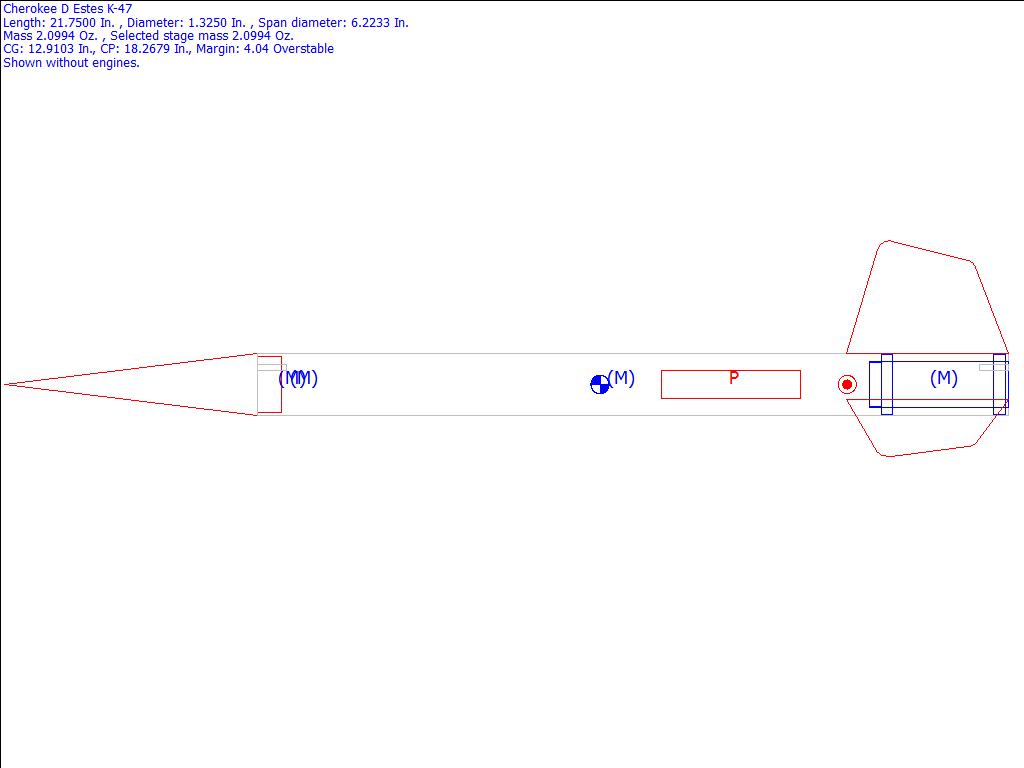

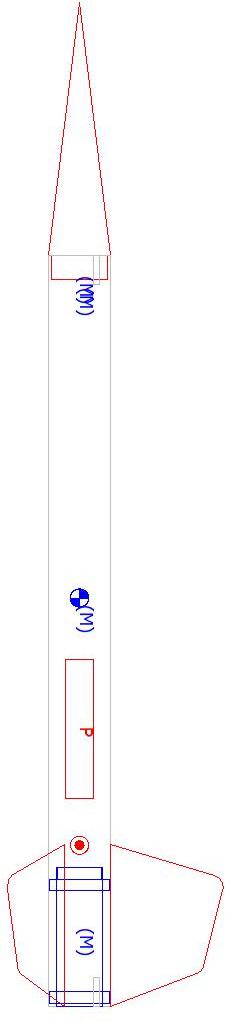

Cherokee D Estes K-47 Rocksim Design File

Contributed by Bruce Levison

• Designer: Gene Street
• Family: Estes : Cherokee-D
• Manufacturer: Estes
• Power: Low-Power
• Recovery: Parachute
• Style: Sport

Comments: Another Simulation By Bruce S. Levison

Designer: Estes K-47 Demensions from 25 year old assembled kit

Download oop_estes_cherokee_d_v8.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Cherokee-D {Kit} (1247, K-47) [1971-1983]
Diameter: 1.3250 inches
Style: Sport

CG: 12.9103 inches from front
CP: 18.2679 inches from front
Margin: 4.04 Overstable

Parts Breakdown

• Cherokee D Estes K-47 Conical Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 16.25 in]
• Estes ESTES 2321 Launch Lug
• Custom Mass Object
• Custom Mass Object
• Estes Polyethylene LDPE Parachute (18.00 in)
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Apogee EB-50 Ring
• Estes Engine hook Standard size Mass Object
• Custom Ring
• Cherokee D Estes K-47 Freeform F Freeform Fin Set
• Estes ESTES 2321 Launch Lug
