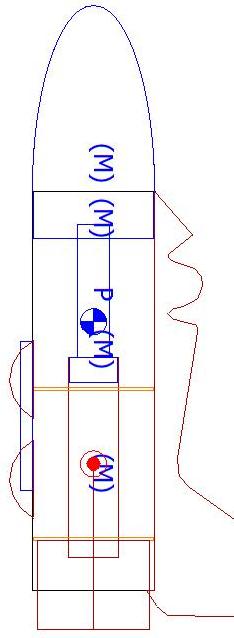

Snake Jumper Rocksim Design File

Comments: FA-14

Visit www.semroc.com to download Semroc-Snake%20Jumper.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

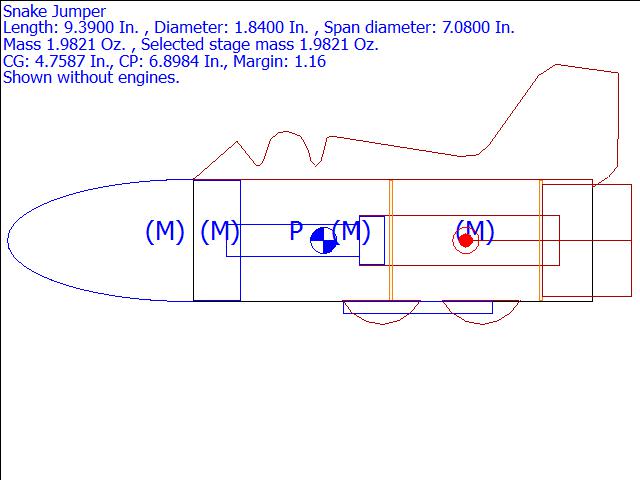

CG: 4.7587 inches from front
CP: 6.8984 inches from front
Margin: 1.16

Parts Breakdown

• Semroc-Geehod.rkt Elliptical Nose Cone
• Estes Mass Object
• Estes Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• External Pod
• Semroc-Snake Jumper.rkt Freeform Freeform Fin Set
• External Pod
• Semroc-Snake Jumper.rkt Freeform Freeform Fin Set
• External Pod
• Semroc-Snake Jumper.rkt Freeform Freeform Fin Set
• External Pod
• Semroc-Snake Jumper.rkt Freeform Freeform Fin Set
• External Pod
• Semroc-Snake Jumper.rkt Freeform Freeform Fin Set
• External Pod
• Semroc-Snake Jumper.rkt Freeform Freeform Fin Set
• Semroc-Snake Jumper.rkt Freeform Freeform Fin Set
• Estes Mass Object
• Semroc Polyethylene LDPE Parachute (12.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Semroc TR-7 Ring
• Semroc EH-28 EH-28 Mass Object
• Semroc CR-916 Ring
• Semroc CR-916 Ring
• Estes ESTES 2321 Launch Lug
• Semroc-Snake Jumper.rkt Freeform Freeform Fin Set
