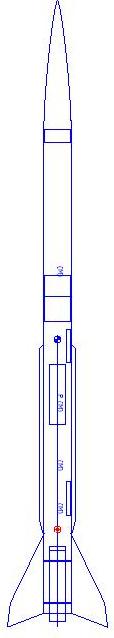

Mercury IV Rocksim Design File

Comments: All Rad Rocket Designs are made to accept a 4.5 inch 24 mm sugar motor, but with a properly cut spacer will easily accept a standard "D" or "E" size commercialy available engine.

Designer: Rad Rockets

Download Mercury IV.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 20.3520 inches from front
CP: 31.7289 inches from front
Margin: 6.94 Overstable

•

Parts Breakdown

• Double Shot Haack Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Rad Rockets Coupler1 Ring
• Perfectflite Alt15k Standard size Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 19.00 in]
• SubAssembly
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.50 in]
• BalsaMachining.com CR50H60-F Ring
• BalsaMachining.com CR50H60-F Ring
• BalsaMachining.com EB24-P Ring
• BalsaMachining.com LL316-200 Launch Lug
• BalsaMachining.com LL316-200 Launch Lug
• Mercury IV Freeform Fin Set Freeform Fin Set
• Mercury IV Freeform Fin Set Freeform Fin Set
• Rad Rockets FRI Parachute protector Mass Object
• Rad Rockets SC-2a 1/4 In Black Elastic shock cord Mass Object
• Rad Rockets SC-1a fire retardant Braided cotton string ( 5 ply) Mass Object
• Rad Rockets Polyethylene LDPE Parachute (21.53 in)
