All Rocksim Designs (1785 of 3219)Tag - Manufacturer:Madcow RocketryTag - Scale:Honest John

HoJo50 - Copyright 2006 All Rights Reserved Madcow Rocketry Rocksim Design File

Contributed by Tim VanMilligan

• Manufacturer: Madcow Rocketry
• Scale: Honest John

Comments: CG 13.5"

Designer: Design entered by Mike Stoop - Madcow Rocketry

Download mcr_hojo50.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Madcow Rocketry - HoJo 50 {Kit}

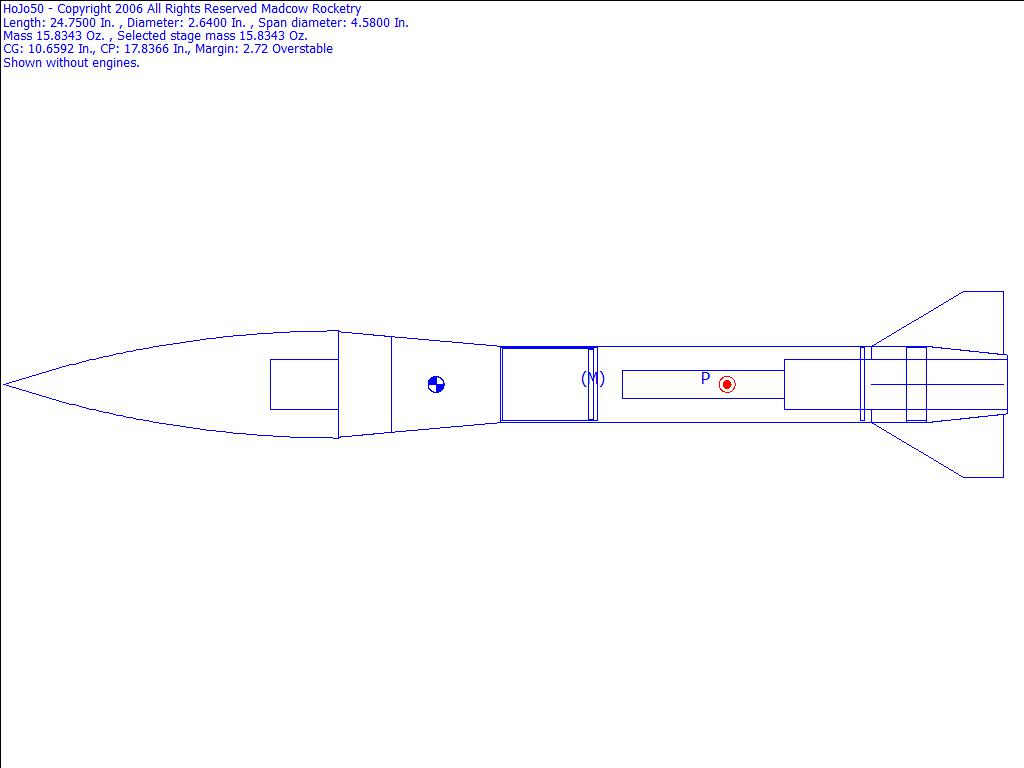

CG: 10.6592 inches from front
CP: 17.8366 inches from front
Margin: 2.72 Overstable

Parts Breakdown

• HoJo31 - Copyright 2006 All Righ Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.68 in]
• Custom Conical Transition
• Custom Conical Transition
• SubAssembly
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.25 in]
• Custom Ring
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.50 in]
• HoJo50 - Copyright 2006 All Righ Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.50 in]
• Custom Ring
• Madcow Rocketry Rip stop nylon Parachute (24.00 in)
• Custom Conical Transition
