Bandicoot Rocksim Design File

Download Bandicoot.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

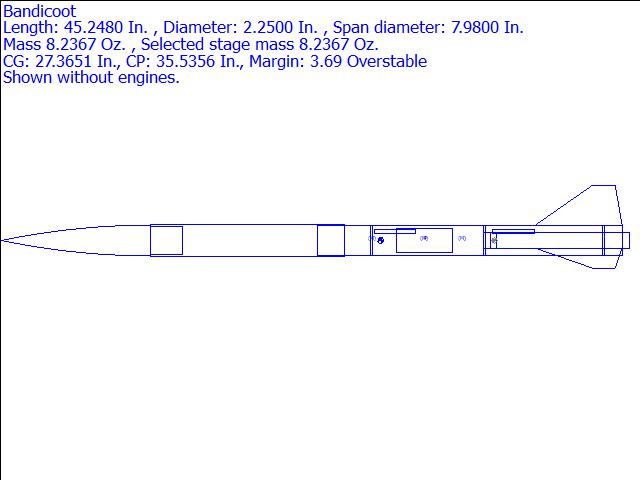

CG: 27.3651 inches from front
CP: 35.5356 inches from front
Margin: 3.69 Overstable

Parts Breakdown

• Alpha 70 (3 Seperate Fins with O Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.00 in]
• BalsaMachining.com C70-4 Ring
• BalsaMachining.com BHC70-W Ring
• Semroc SE-12 Screw Eye-Large Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 20.00 in]
• SubAssembly
• BalsaMachining.com CR5570-W Ring
• BalsaMachining.com CR5570-W Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.50 in]
• BalsaMachining.com EB29-P Ring
• Bandicoot.rkt Freeform Fin Set Freeform Fin Set
• Rad Rockets SC-2a 1/4 In Black Elastic shock cord Mass Object
• Rad Rockets SC-1a fire retardant Braided cotton string ( 5 ply) Mass Object
• BalsaMachining.com LL14-300 Launch Lug
• BalsaMachining.com LL14-300 Launch Lug
• Apogee Components Polyethylene LDPE Parachute (24.00 in)
