Estes - Spirit - Rocksim Design File

Estes - Spirit Rocksim Design File

Comments: All data come from a kit build. The launch lug assembly and shock cord come pre-attached to the body tube. The extra nose mass is only necessary when flying the rocket with an optional booster module. When flying just the single stage (this kit), the rocket is stable without the extra mass.

Designer: Estes Industries, Rocksim file by David J. Thomas

Download Spirit.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

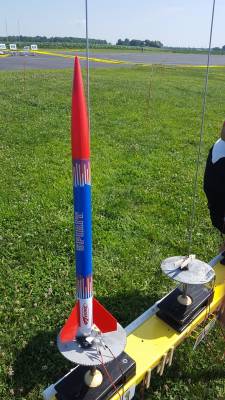

Kit Name: Estes - Spirit {Kit} (2492) [?-?]
Diameter: 1.3300 inches
Length: 21.0000 inches
Style: Sport

Parts Breakdown

Estes Ogive Nose Cone

Custom Mass Object

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.02 in]

Custom Mass Object

Estes Polyethylene LDPE Parachute (15.00 in)

Estes ESTES 2321 Launch Lug

Custom Polystyrene PS Ring (1.1890 - 1.2799 in)

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.31 in]

Custom Polystyrene PS Freeform Fin Set

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
