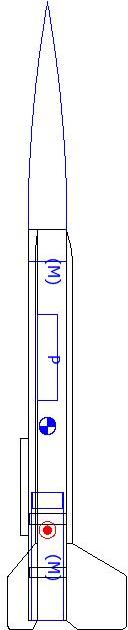

Aerobee 150 (RTV-N-8) Rocksim Design File

Comments: This model represents the short-body Aerobee 150, which had a true length of 241.8". The scale body tube is 9.09" long. Carl @ SEMROC has agreed to add the correct-length 5.3" ogive to the Series-8 nose cone list. The original BARCLONE model was a semi-scale representation derived from the earlier semi-scale MMI vrsion, and thus had many incorrect dimensions. This model is much more true to scale. It also requires no additional ballast for stability. As with the other Aerobee-Hi models, this only represents the upper stage of a two-stage vehicle.

Designer: C. P. McGraw -- BARCLONE

Visit Ye Olde Rocket Forum to download 741_Demo.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 9.8972 inches from front
CP: 12.3238 inches from front
Margin: 2.67 Overstable

Parts Breakdown

• 741_Demo.rkt Ogive Nose Cone
• Semroc SE-10 Screw Eye Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.14 in]
• SubAssembly
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Semroc TR-7 Ring
• Semroc EH-28 Engine Hook Standard Mass Object
• Semroc CR-78 Ring
• Semroc CR-78 Ring
• 741_Demo.rkt Freeform Fin Set Freeform Fin Set
• 741_Demo.rkt Freeform Fin Set Freeform Fin Set
• 741_Demo.rkt Freeform Fin Set Freeform Fin Set
• 741_Demo.rkt Freeform Fin Set Freeform Fin Set
• Semroc Polyethylene LDPE Parachute (12.00 in)
• Semroc LL-122 Launch Lug
