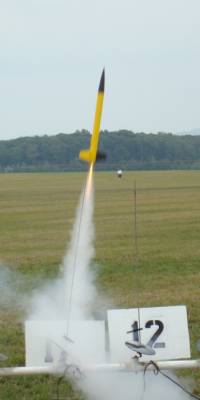

Semroc - Magnum Hornet Rocksim Design File

Contributed by Semroc

• Manufacturer: Semroc
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 1
• Style: Clone
• Style: Sport

Comments: KV-69

Designer: Semroc Astronautics Corp

Download semroc_magnum_hornet.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Semroc - Magnum Hornet {Kit} (KV-69)
Diameter: 1.3250 inches
Length: 19.8000 inches
Style: Clone

CG: 10.9546 inches from front
CP: 16.1518 inches from front
Margin: 3.92 Overstable

Parts Breakdown

• Semroc - Magnum Hornet Parabolic Nose Cone
• Semroc SE-10 Screw Eye Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.07 in]
• Semroc EH-28 Engine Hook Standard Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.25 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.07 in]
• Semroc - Magnum Hornet Freeform Freeform Fin Set
• Semroc LL-330 Launch Lug
• Semroc EC-124 Mass Object
• Custom Paper Streamer (0.0100 in)
