Wildman Drago Rocksim Design File

Comments: Notes: 1) The model incorporates an AeroPac 29mm Motor Retainer. 2) The motor mount length may need to be changed to match the part supplied in the kit. 3) A 1/4-20 eyebolt is used in the nosecone 4) A parachute protector was used (instead of dog barf). 5) Note position of forward centering ring - relocate to match assembly instructions. 6) "As-Built Mass" set to model rocket as built and finished by Andrea Overton.

Designer: Tim Lehr, Wildman

Visit www.wildmanrocketry.com to download Drago.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

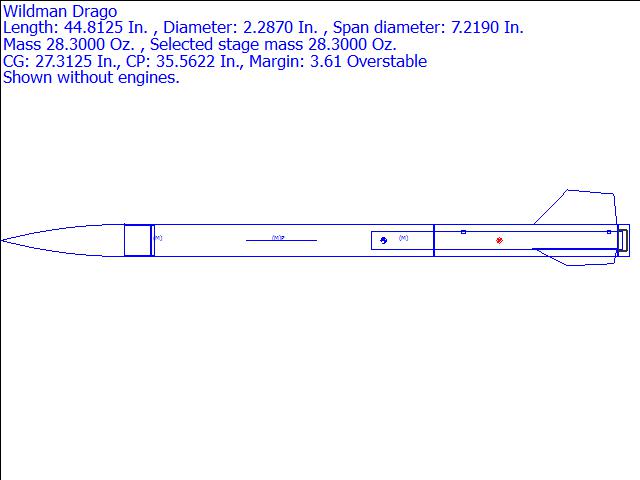

CG: 27.3125 inches from front
CP: 35.5622 inches from front
Margin: 3.61 Overstable

Parts Breakdown

• Drago RockSim File Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 36.06 in]
• Custom Mass Object
• Custom Ring
• Custom Launch Lug
• Custom Launch Lug
• Custom 1.3 oz. Ripstop Nylon (SkyAngle) Parachute (30.00 in)
• Custom Mass Object
• SubAssembly
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.62 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.55 in]
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.94 in]
• Drago.rkt Freeform Fin Set Freeform Fin Set
• Custom Mass Object
• Custom Ring
