Designs >> Rocksim Library >>

All Rocksim Designs (900 of 3219)Tag - Manufacturer:Aerotech

Airspike Rocksim Design File

Contributed by Brittain Fraley

• Manufacturer: Aerotech

Comments: RSim Model By Brittain Fraley

Designer: Aerotech

Download aerotech_airspike.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

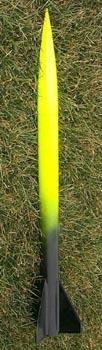

Kit Name: Aerotech - Airspike {Kit}

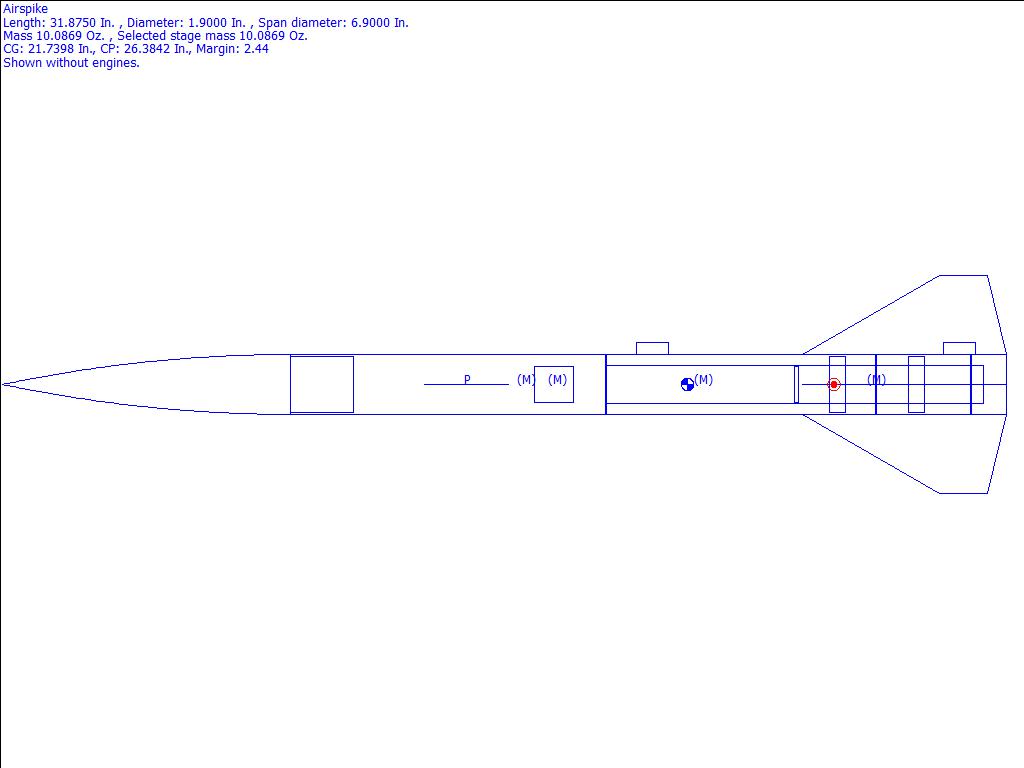

CG: 21.7398 inches from front
CP: 26.3842 inches from front
Margin: 2.44

Parts Breakdown

• Airspike Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 22.75 in]
• Aerotech 19035 Launch Lug
• Aerotech 19035 Launch Lug
• Airspike Freeform Fin Set Freeform Fin Set
• Aerotech 19015 Screw Eye Mass Object
• Aerotech 17386 Shock cord 6' Mass Object
• Custom Rip stop nylon Parachute (16.00 in)
• Aerotech 14829 Ring
• Aerotech 14829 Ring
• Aerotech 14829 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Aerotech 19001 Motor Hook Mass Object
• Aerotech 19011 Cooling Mesh Mass Object
• Aerotech 14010 Ring
• Aerotech 19344 Ring
• Aerotech 19344 Ring
• Aerotech 19030 Ring
