Prowler Rocksim Design File

Contributed by Jonathan Elder

• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 1

Comments: This is a high performance rocket for its size even though it uses 18mm engines.

Designer: Estes Industries (Info compiled by Jonathan Elder)

Download oop_estes_prowler.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

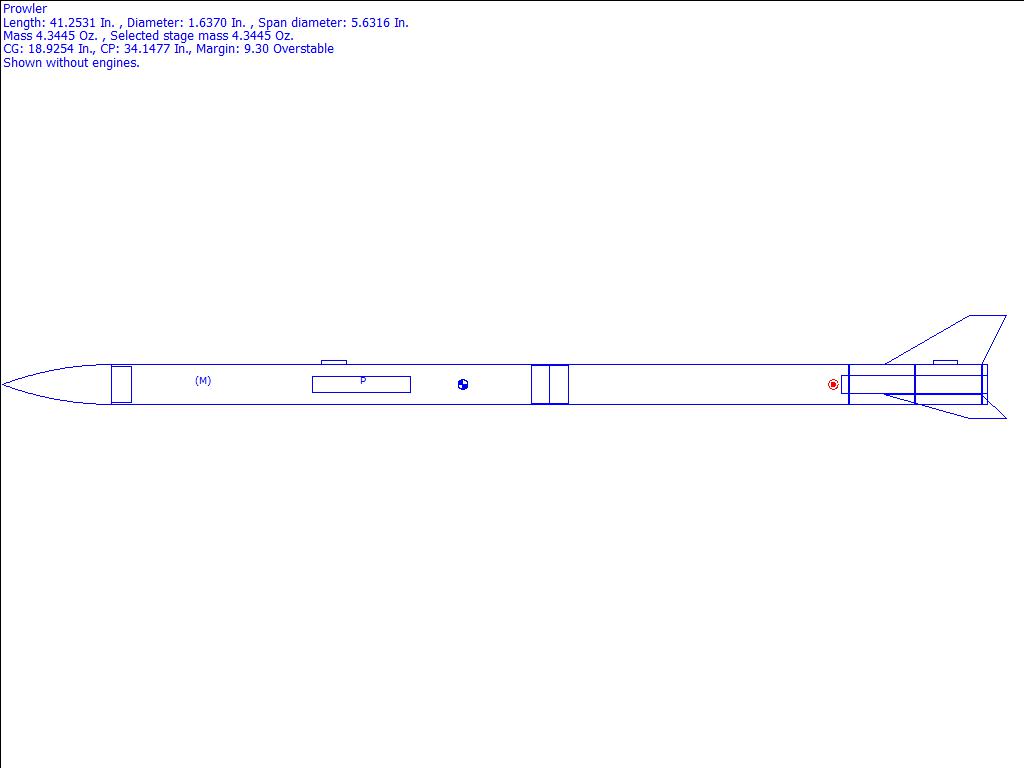

Kit Name: Estes - Prowler {Kit} (2156)
Diameter: 1.6400 inches
Length: 40.5000 inches

CG: 18.9254 inches from front
CP: 34.1477 inches from front
Margin: 9.30 Overstable

Parts Breakdown

• God's Army Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Estes Estes Ring
• Custom Mass Object
• Apogee Components Polyethylene LDPE Parachute (24.00 in)
• Apogee 1/8" X 1 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Prowler Freeform Fin Set Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Apogee 1/8" X 1 Launch Lug
• Apogee CR-50-60 Ring
• Apogee CR-50-60 Ring
• Apogee CR-50-60 Ring
