Designs >> Rocksim Library >>

All Rocksim Designs (1842 of 3219)Tag - Manufacturer:Nordic Rocketry

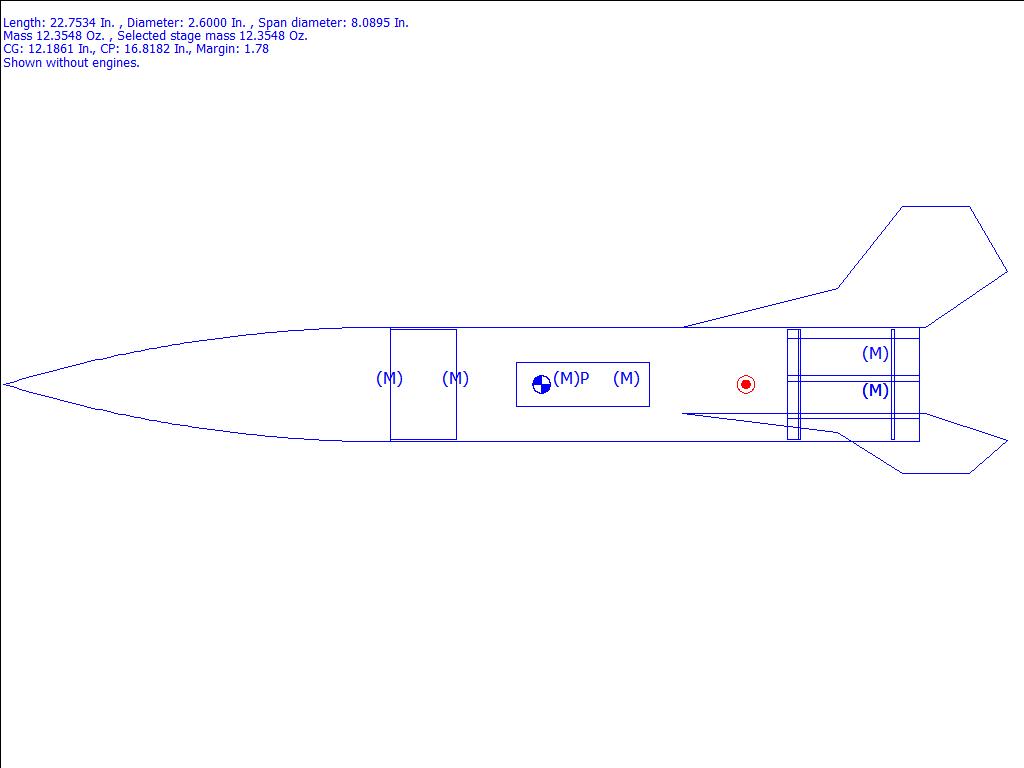

Nordic Rocketry Meanie Rocksim Design File

• Manufacturer: Nordic Rocketry

Download mods_nordic_meanie_ii_18x3mm.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Nordic Rocketry - Meanie

CG: 12.1861 inches from front
CP: 16.8182 inches from front
Margin: 1.78

Parts Breakdown

• Nordic Rocketry Meanie Ogive Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Estes Engine hook Standard size Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Estes Engine hook Standard size Mass Object
• Custom Ring
• Custom Ring
• Custom Mass Object
• DIY Eye Hook #4 Mass Object
• Custom Rip stop nylon Parachute (18.00 in)
• Custom Mass Object
• Nordic Rocketry Meanie Freeform Freeform Fin Set
• Apogee EB-50 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Estes Engine hook Standard size Mass Object
