Mini Excel Rocksim Design File

• Manufacturer: Scratch

Comments: 29 mm Knock-off of Binder Design's Excel. Uses pop lug for reduction in total drag and through the wall fin mounting to engine block. First attempt in flying resulted in a sputter ignition of the composite motor. The rocket promptly became a cruise missile upon tipping off the launch rod. Better luck this time...

Designer: Paul H. Demus

Download scratch_mini_excel.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - Mini Excel {Scratch}

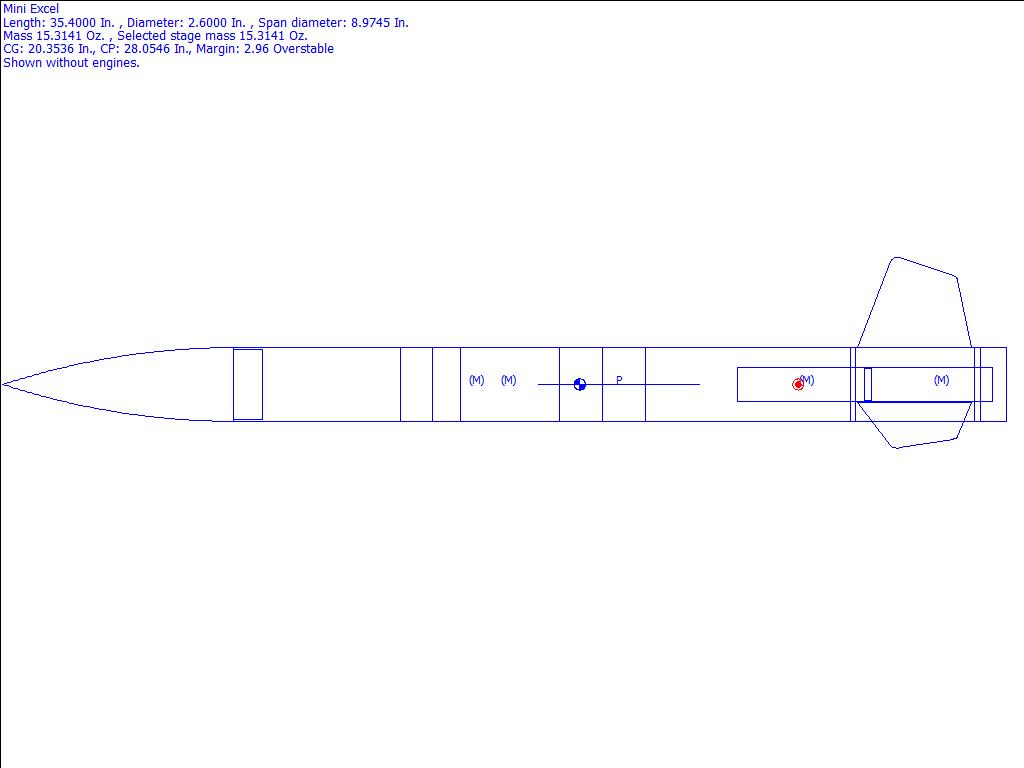

CG: 20.3536 inches from front
CP: 28.0546 inches from front
Margin: 2.96 Overstable

Parts Breakdown

• AIM-54 Phoenix Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.00 in]
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Custom Ring
• Public Missiles Rip stop nylon Parachute (34.00 in)
• Custom Mass Object
• DIY Eye Hook #4 Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.25 in]
• Mini Excel Freeform Fin Set Freeform Fin Set
• Public Missiles PML CR-06 Ring
• Public Missiles PML CR-06 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.00 in]
• Custom Ring
• Custom Mass Object
• Estes Engine hook Standard size Mass Object
