Loc / Precision - LIL' NUKE Rocksim Design File

Contributed by Steve Naquin

• Manufacturer: LOC/Precision
• Motor Size: 29 mm
• Power: Low-Power
• Power: Mid-Power
• Recovery: Parachute
• Style: Sport

Comments: Measurements & Weight Taken From Actual Assembled Kit (Actual Built Weight = 14.4oz)

Designer: Loc / Precision

Download loc_lilnuke_5.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

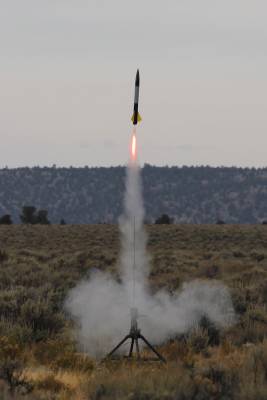

Kit Name: LOC/Precision - Lil' Nuke {Kit} (PK-4) [1988-]
Diameter: 2.2600 inches
Length: 29.5000 inches
Style: Sport

CG: 15.5462 inches from front
CP: 23.0448 inches from front
Margin: 3.32 Overstable

Parts Breakdown

• Loc / Precision - LIL' NUKE Ogiv Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 20.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Public Missiles PML CR-01 Ring
• Public Missiles PML CR-01 Ring
• LOC LOC LL25 Launch Lug
• LOC LOC LL25 Launch Lug
• LOC/Precision Rip stop nylon Parachute (14.50 in)
• Public Missiles PML SC-.75 "3/4"" shock cord" Mass Object
• Custom Mass Object
• Loc / Precision - LIL' NUKE Free Freeform Fin Set
