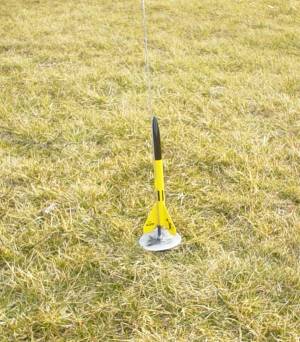

Scamp #1286 Rocksim Design File

Contributed by Jay Goemmer

• Family: Estes : Scamp
• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Style: Sport

Comments: Data entered by Jay "Centuri Guy" Goemmer -- 06 Apr 2007

Designer: Estes First 1.5" of body tube should be painted black One fin should also be painted black You can substitute a Semroc BNC-50X and a small SE-10 screw eye for the PNC-50X nose cone A streamer is recommended instead of the stock 12" parachute

Download oop_estes_scamp.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Scamp {Kit} (1286) [1977-1982]
Diameter: 0.9760 inches
Style: Sport

Parts Breakdown

• Estes Scamp #1286 Elliptical Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.50 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes 30162-2 Ring
• Estes Engine hook Standard size Mass Object
• Estes CR-2050 Ring
• Estes CR-2050 Ring
• Estes Polyethylene LDPE Parachute (12.00 in)
• Estes Scamp #1286 Freeform Fin S Freeform Fin Set
• Estes LL-2B Launch Lug
