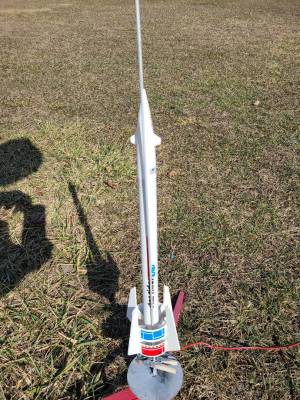

Star Rider Rocksim Design File

• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 3
• Style: Futuristic/Exotic

Comments: 2 nosecone finlets are simulated with the 3 unattached fins. The dimensions for this model are estimated.

Designer: Estes Industries, Inc., (data entered by Charles Keller based on Kit # K-2010 instructions)

Download oop_estes_starrider.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Star Rider {Kit} (2010) [1989-1992]
Diameter: 0.9760 inches
Length: 16.0620 inches
Style: Futuristic/Exotic

CG: 9.7174 inches from front
CP: 12.2440 inches from front
Margin: 2.59 Overstable

Parts Breakdown

• Chunga's Revenge Ogive Nose Cone
• DIY Eye Hook #4 Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes Engine hook Standard size Mass Object
• Estes 30162-2 Ring
• Estes EST-30164 Ring
• Estes ESTES 2321 Launch Lug
• Custom Mass Object
• Quest Polyethylene LDPE Parachute (12.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.81 in]
• Estes Star Rider Freeform Fin Se Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.81 in]
• Estes Star Rider Freeform Fin Se Freeform Fin Set
