Phoenix - downscale Rocksim Design File

Comments: Reviewed in EMRR additional ring added to engine mount to allow for forgotton attachment of shockcord. Tube coupler added to engine mount to correct centering ring mis-match.

Designer: Marlin Meyer Designed September, 2009 Finished March, 2010

Download marlin_estes_phoenix_downscale.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

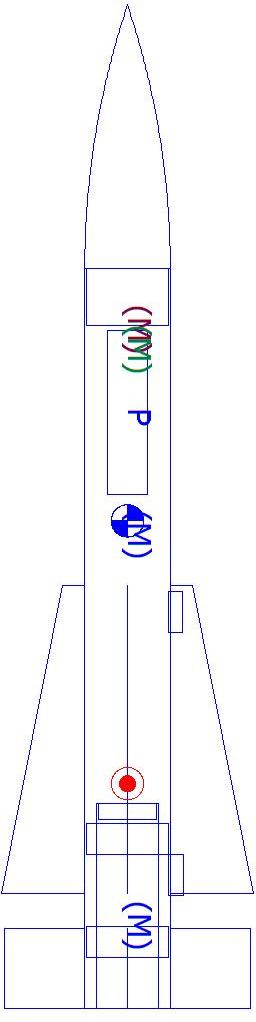

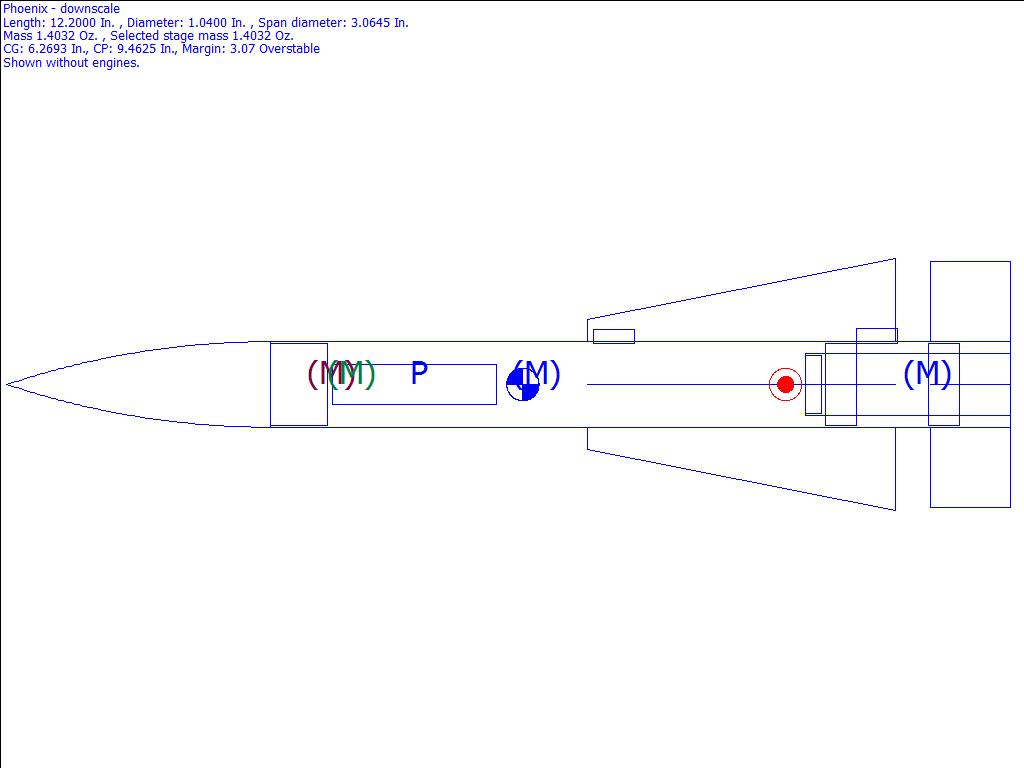

CG: 6.2693 inches from front
CP: 9.4625 inches from front
Margin: 3.07 Overstable

Parts Breakdown

• marlin_estes_phoenix_downscale.r Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.50 in]
• Estes 30162-2 Ring
• Estes Engine hook Standard size Mass Object
• Apogee 13051 Launch Lug
• Semroc Mass Object
• Semroc Mass Object
• Semroc SE-10 Screw Eye Mass Object
• Estes Polyethylene LDPE Parachute (12.00 in)
• marlin_estes_phoenix_downscale.r Freeform Fin Set
• marlin_estes_phoenix_downscale.r Freeform Fin Set
• Semroc CR-78 Ring
• Semroc CR-78 Ring
• Apogee 13051 Launch Lug
