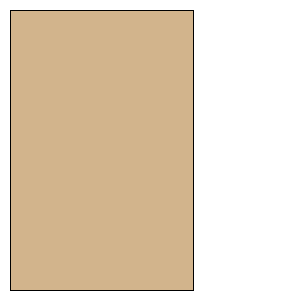

Sky CZ-2E Satellite Launch Vehic Trapezoid Fin SetManufacturer: | DynaStar | Part Number: | | Style: | Trapezoid Fin Set | Material: | Polystyrene PS |
Download as PDF Root Chord: | 0.1680 inches (4.2672 mm) | Tip Chord: | 0.1680 inches (4.2672 mm) | Sweep Distance: | 0.0000 inches (0.0000 mm) | SemiSpan: | 0.1100 inches (2.7940 mm) | Point 1: | (0.0000 mm, 0.0000 mm) | Point 2: | (2.7940 mm, 0.0000 mm) | Point 3: | (2.7940 mm, 4.2672 mm) | Point 4: | (0.0000 mm, 4.2672 mm) | Width: | 0.1100 inches (2.7940 mm) | Height: | 0.1680 inches (4.2672 mm) |
