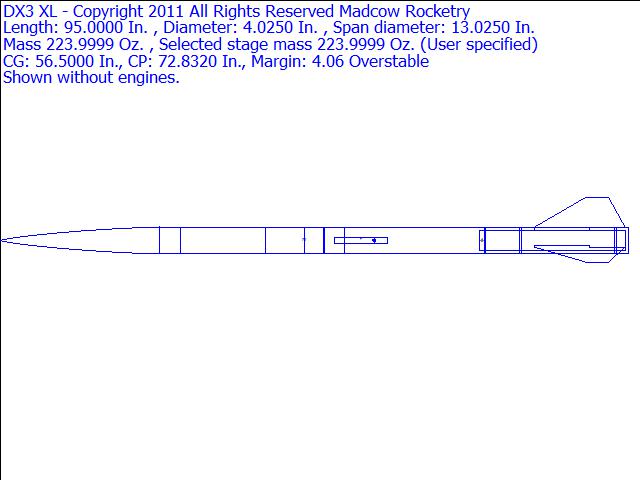

DX3 XL - Copyright 2011 All Rights Reserved Madcow Rocketry Rocksim Design File

Designer: Mike Stoop - Madcow Rocketry

Visit www.madcowrocketry.com to download dx3xl.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 56.5000 inches from front
CP: 72.8320 inches from front
Margin: 4.06 Overstable

Parts Breakdown

• dx3xl.rkt Haack Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 22.00 in]
• Madcow Rocketry C101 Ring
• Madcow Rocketry CB101 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 49.00 in]
• Madcow Rocketry CR10138 Ring
• Madcow Rocketry CR10138 Ring
• Madcow Rocketry Rip stop nylon Parachute (48.00 in)
• Madcow SC-15 Tubular Nylon 9/16 In x 15 Ft Mass Object
• dx3xl.rkt Trapezoid Fin Set Trapezoid Fin Set
• Madcow Rocketry CR10138 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 22.00 in]
