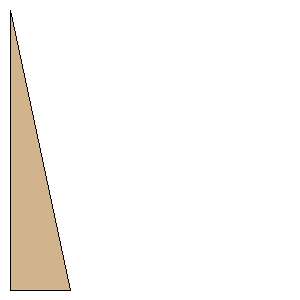

Sunward Phoenix Trapezoid Fin Se Trapezoid Fin SetManufacturer: | Custom | Part Number: | | Style: | Trapezoid Fin Set | Material: | Paper |
![](parts/fins.php?partid=2904)
Download as PDF Root Chord: | 5.2500 inches (133.3500 mm) | Tip Chord: | 0.0000 inches (0.0000 mm) | Sweep Distance: | 5.2500 inches (133.3500 mm) | SemiSpan: | 1.1250 inches (28.5750 mm) | Point 1: | (0.0000 mm, 0.0000 mm) | Point 2: | (28.5750 mm, 133.3500 mm) | Point 3: | (28.5750 mm, 133.3500 mm) | Point 4: | (0.0000 mm, 133.3500 mm) | Width: | 1.1250 inches (28.5750 mm) | Height: | 5.2500 inches (133.3500 mm) |
