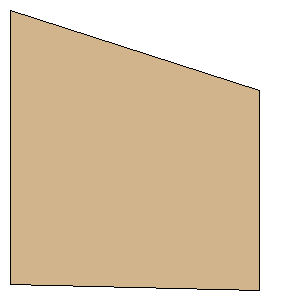

The Launch Pad Alarm Trapezoid F Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 phenolic |
Download as PDF | Root Chord: | 2.7500 inches (69.8500 mm) | | Tip Chord: | 2.0000 inches (50.8000 mm) | | Sweep Distance: | 0.8003 inches (20.3276 mm) | | SemiSpan: | 2.5000 inches (63.5000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (63.5000 mm, 20.3276 mm) | | Point 3: | (63.5000 mm, 71.1276 mm) | | Point 4: | (0.0000 mm, 69.8500 mm) | | Width: | 2.5000 inches (63.5000 mm) | | Height: | 2.8003 inches (71.1276 mm) |
