Rocketry Parts Database >> Fins >>

Estes 220 Swift Trapezoid Fin Se Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

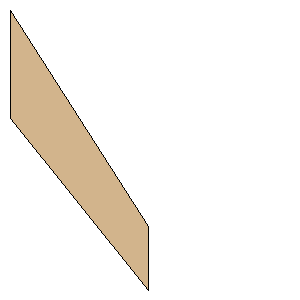

Root Chord:0.9579 inches (24.3307 mm)
Tip Chord:0.5563 inches (14.1300 mm)
Sweep Distance:1.9094 inches (48.4988 mm)
SemiSpan:1.2205 inches (31.0007 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(31.0007 mm, 48.4988 mm)
Point 3:(31.0007 mm, 62.6288 mm)
Point 4:(0.0000 mm, 24.3307 mm)
Width:1.2205 inches (31.0007 mm)
Height:2.4657 inches (62.6288 mm)
