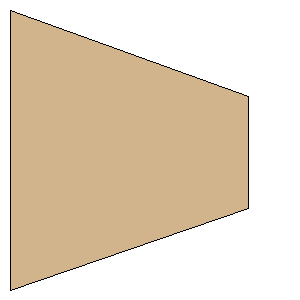

Quest Harpon AGM Trapezoid Fin S Trapezoid Fin SetManufacturer: | Custom | Part Number: | | Style: | Trapezoid Fin Set | Material: | Balsa |
Download as PDF Root Chord: | 2.5000 inches (63.5000 mm) | Tip Chord: | 1.0000 inches (25.4000 mm) | Sweep Distance: | 0.7734 inches (19.6444 mm) | SemiSpan: | 2.1250 inches (53.9750 mm) | Point 1: | (0.0000 mm, 0.0000 mm) | Point 2: | (53.9750 mm, 19.6444 mm) | Point 3: | (53.9750 mm, 45.0444 mm) | Point 4: | (0.0000 mm, 63.5000 mm) | Width: | 2.1250 inches (53.9750 mm) | Height: | 2.5000 inches (63.5000 mm) |
