Rocketry Parts Database >> Fins >>

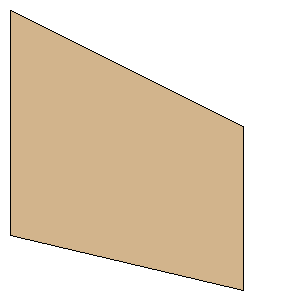

Custom Balsa Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:1.1417 inches (28.9992 mm)
Tip Chord:0.8268 inches (21.0007 mm)
Sweep Distance:0.5906 inches (15.0012 mm)
SemiSpan:1.1811 inches (29.9999 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(29.9999 mm, 15.0012 mm)
Point 3:(29.9999 mm, 36.0020 mm)
Point 4:(0.0000 mm, 28.9992 mm)
Width:1.1811 inches (29.9999 mm)
Height:1.4174 inches (36.0020 mm)
