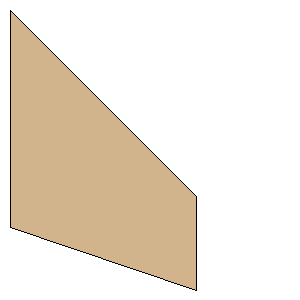

Shrox Industria SHX/TVM-01 Trape Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.7500 inches (44.4500 mm) | | Tip Chord: | 0.7500 inches (19.0500 mm) | | Sweep Distance: | 1.5000 inches (38.1000 mm) | | SemiSpan: | 1.5000 inches (38.1000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (38.1000 mm, 38.1000 mm) | | Point 3: | (38.1000 mm, 57.1500 mm) | | Point 4: | (0.0000 mm, 44.4500 mm) | | Width: | 1.5000 inches (38.1000 mm) | | Height: | 2.2500 inches (57.1500 mm) |
