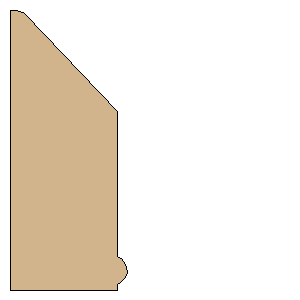

Estes Sidewinder EST2125 Freefor Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 158.8230 mm) | | Point 2: | (61.0000 mm, 158.8230 mm) | | Point 3: | (61.0000 mm, 155.7110 mm) | | Point 4: | (62.5703 mm, 154.4700 mm) | | Point 5: | (63.8564 mm, 153.4820 mm) | | Point 6: | (65.0911 mm, 152.0930 mm) | | Point 7: | (66.0171 mm, 150.3950 mm) | | Point 8: | (66.4802 mm, 148.6980 mm) | | Point 9: | (66.3258 mm, 146.8460 mm) | | Point 10: | (65.6570 mm, 144.1810 mm) | | Point 11: | (64.4566 mm, 142.6370 mm) | | Point 12: | (63.0361 mm, 141.1660 mm) | | Point 13: | (61.0000 mm, 139.7050 mm) | | Point 14: | (61.0000 mm, 57.5200 mm) | | Point 15: | (8.9069 mm, 2.6326 mm) | | Point 16: | (7.9358 mm, 1.6593 mm) | | Point 17: | (7.0269 mm, 1.1941 mm) | | Point 18: | (6.1451 mm, 0.9311 mm) | | Point 19: | (5.0521 mm, 0.7348 mm) | | Point 20: | (4.0000 mm, 0.5000 mm) | | Point 21: | (0.0000 mm, 0.0000 mm) | | Width: | 6.2529 inches (158.8230 mm) | | Height: | 6.2529 inches (158.8230 mm) |
