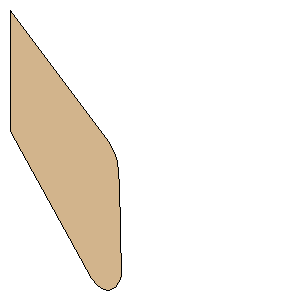

Semroc - Lil Hercules Freeform F Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 36.5760 mm) | | Point 2: | (24.3840 mm, 80.5180 mm) | | Point 3: | (26.1620 mm, 82.8040 mm) | | Point 4: | (27.9400 mm, 83.8200 mm) | | Point 5: | (29.7180 mm, 84.0740 mm) | | Point 6: | (31.7500 mm, 83.3120 mm) | | Point 7: | (33.2740 mm, 81.0260 mm) | | Point 8: | (33.5697 mm, 79.7560 mm) | | Point 9: | (33.0072 mm, 52.3240 mm) | | Point 10: | (32.2580 mm, 45.4660 mm) | | Point 11: | (31.2420 mm, 42.6720 mm) | | Point 12: | (29.7180 mm, 39.6240 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Width: | 1.4400 inches (36.5760 mm) | | Height: | 3.3100 inches (84.0740 mm) |
