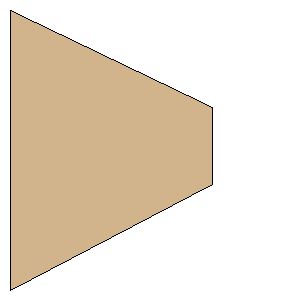

NikeAjax.rkt Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:1/4 Aircraft Plywood

Download as PDF

Root Chord:6.5000 inches (165.1000 mm)
Tip Chord:1.8000 inches (45.7200 mm)
Sweep Distance:2.2566 inches (57.3176 mm)
SemiSpan:4.7000 inches (119.3800 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(119.3800 mm, 57.3176 mm)
Point 3:(119.3800 mm, 103.0376 mm)
Point 4:(0.0000 mm, 165.1000 mm)
Width:4.7000 inches (119.3800 mm)
Height:6.5000 inches (165.1000 mm)
