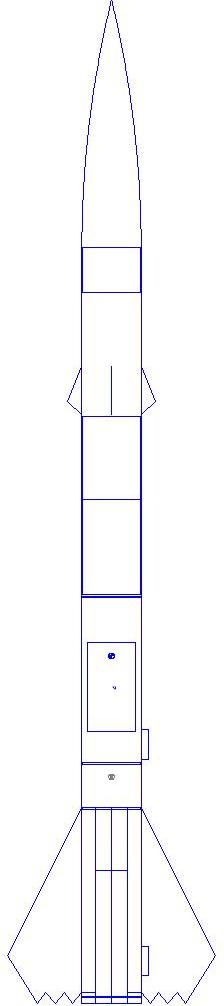

Binder Design Stealth 54 Rocksim Design File

Contributed by Chuck Williams

• Family: Binder Design : Stealth
• Manufacturer: Binder Design

Download binder_design_stealth_54mm.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Binder Design - Stealth 54mm {Kit}

CG: 44.2904 inches from front
CP: 52.4590 inches from front
Margin: 2.04

Parts Breakdown

• Binder Design Samurai 38mm Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.00 in]
• Binder Design CP-3.90 Ring
• Binder Design Stealth 38mm Trape Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• Binder Design BH-3.9 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.00 in]
• binder_design_stealth_54mm.rkt F Freeform Fin Set
• Binder Design CR-3.9-54mm Ring
• Binder Design CR-3.9-54mm Ring
• Binder Design CR-3.9-54mm Ring
• Binder Design 1.9 oz. Ripstop Nylon (SkyAngle) Parachute (36.00 in)
• Binder Design LL-50 Launch Lug
• Binder Design LL-50 Launch Lug

Related Kits:

• Binder Design - Dual Deploy Kit for 3.9" Diameter Rockets {Component}
