John Simmons's (BAR-07) Mercury Capsule Abort (LES)
This rocket is a semi-scale version of the capsule from the NASA Mercury program. It has (3) 24mm motors in the abort tower.
The capsule itself started as an Atomic City 1/12 scale plastic model.
The tower is hand built from paper tubing & basswood.
When the canted triple cluster of motors in the tower fire their ejection charges the pressure front travels down the center tube and the 30" parachute rear deploys out of the bottom of the capsule.
Build Thread Link: Mercury Escape Tower Rocket | The Rocketry Forum

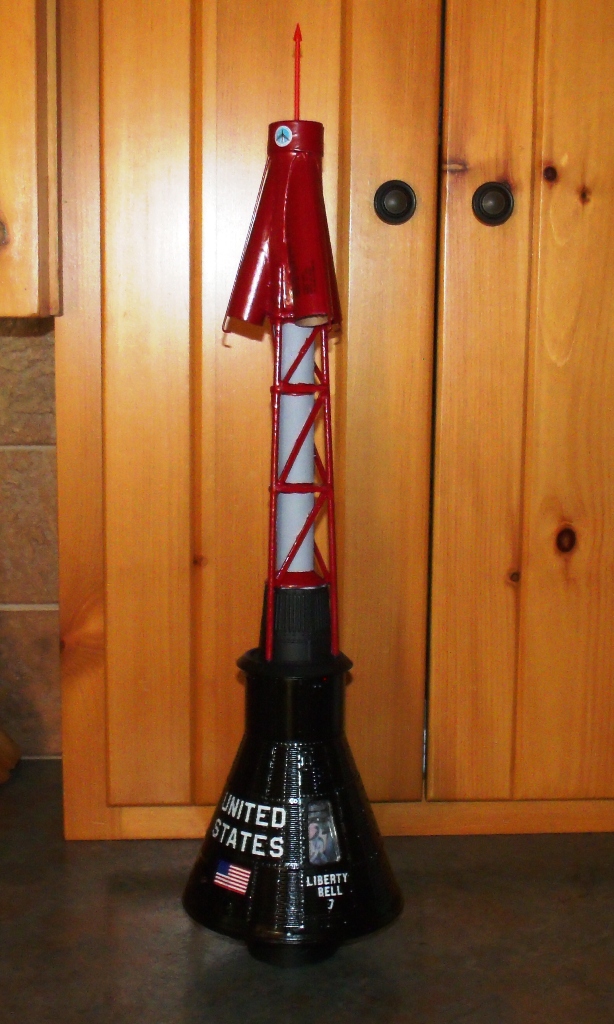

Mercury LES: Complete

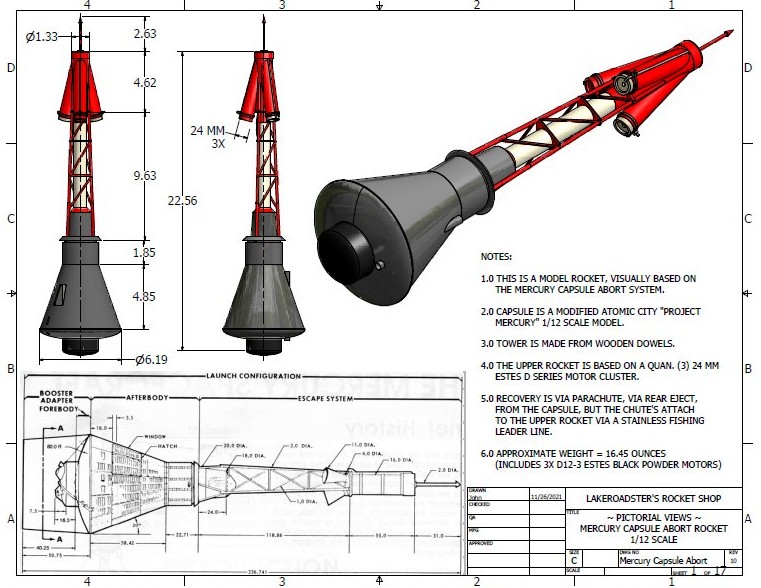

Mercury LES Dwg: Outline

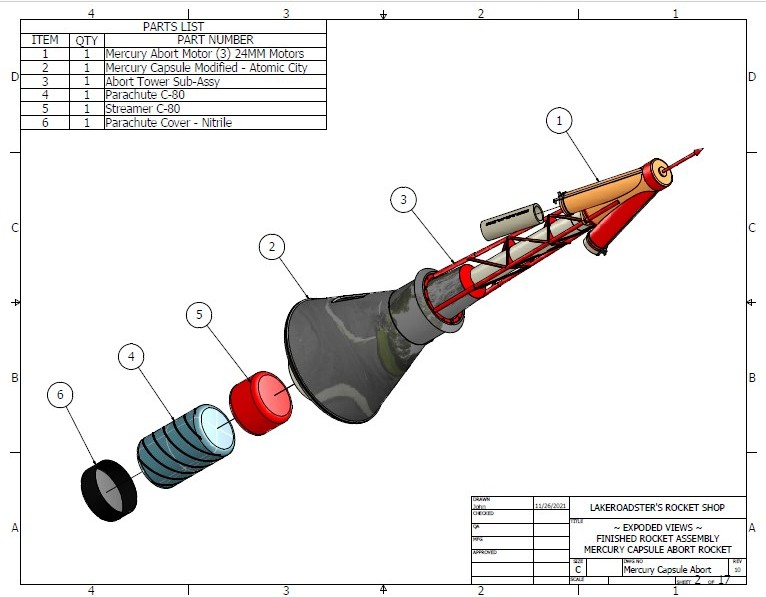

Mercury LES Dwg: Overall Exploded View

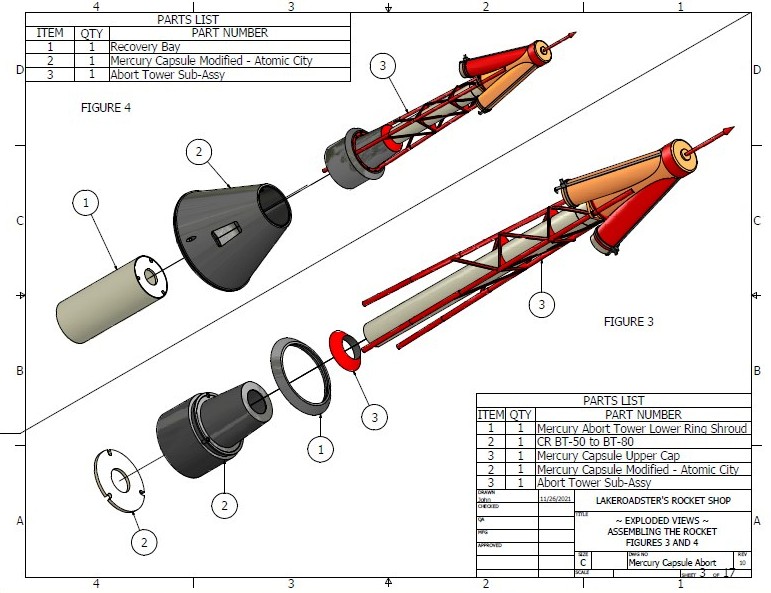

Mercury LES Dwg: Component Exploded View

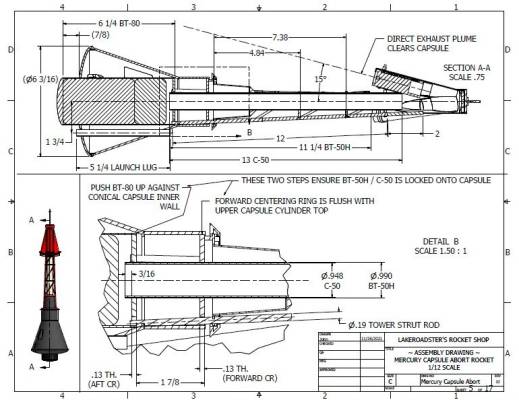

Mercury LES Dwg: Sectional View

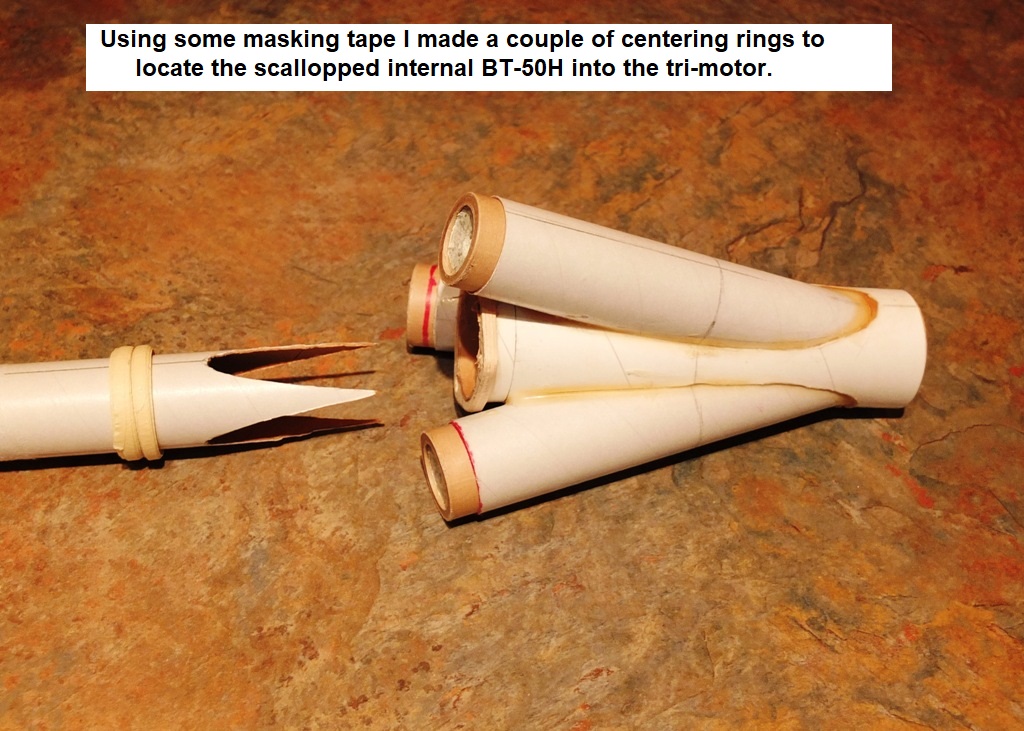

Mercury LES: Tri-Motor Cluster Side View

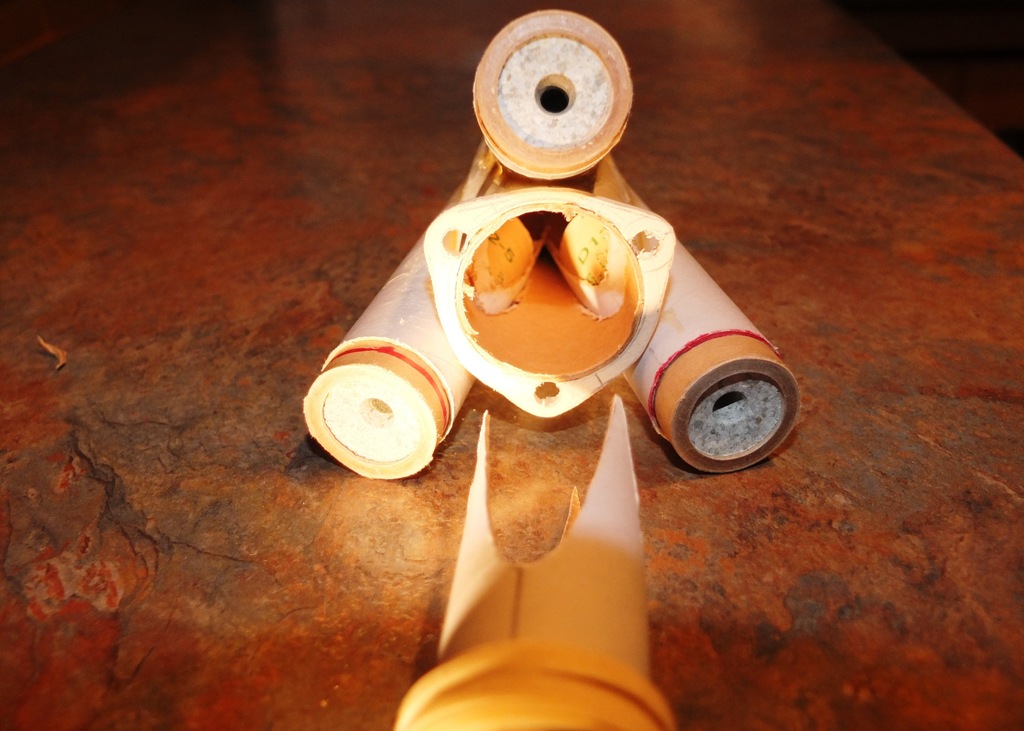

Mercury LES: Tri-Motor Cluster Bottom View

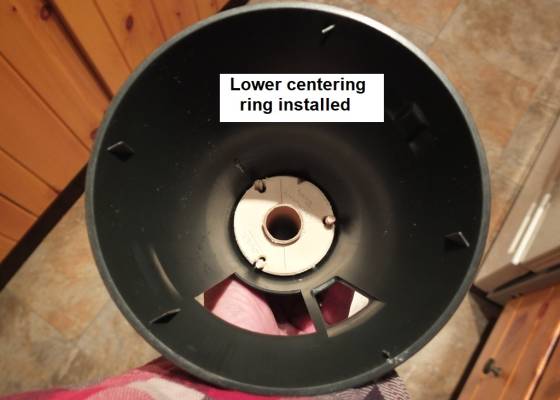

Mercury LES: Tower Attachment to Capsule

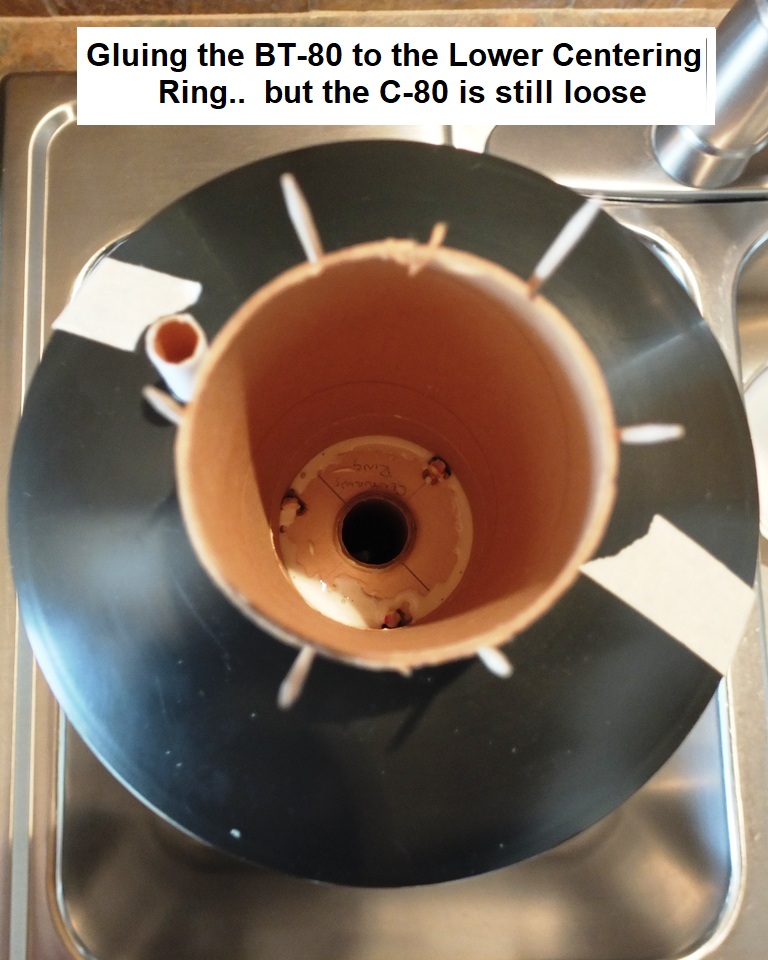

Mercury LES: Tower attachment To Recovery Bay

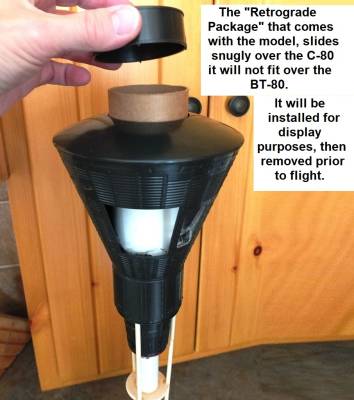

Mercury LES: Retrograde

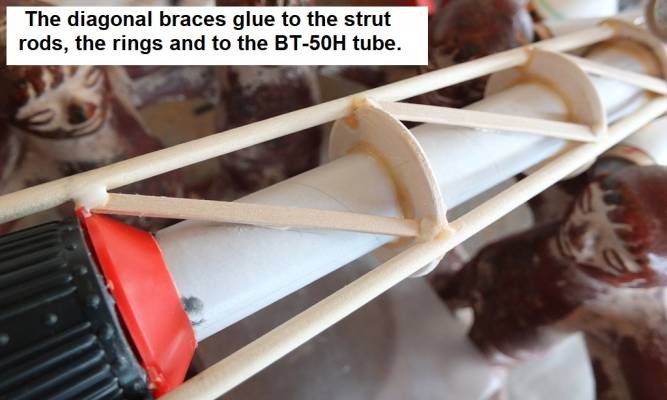

Mercury LES: Tower Build

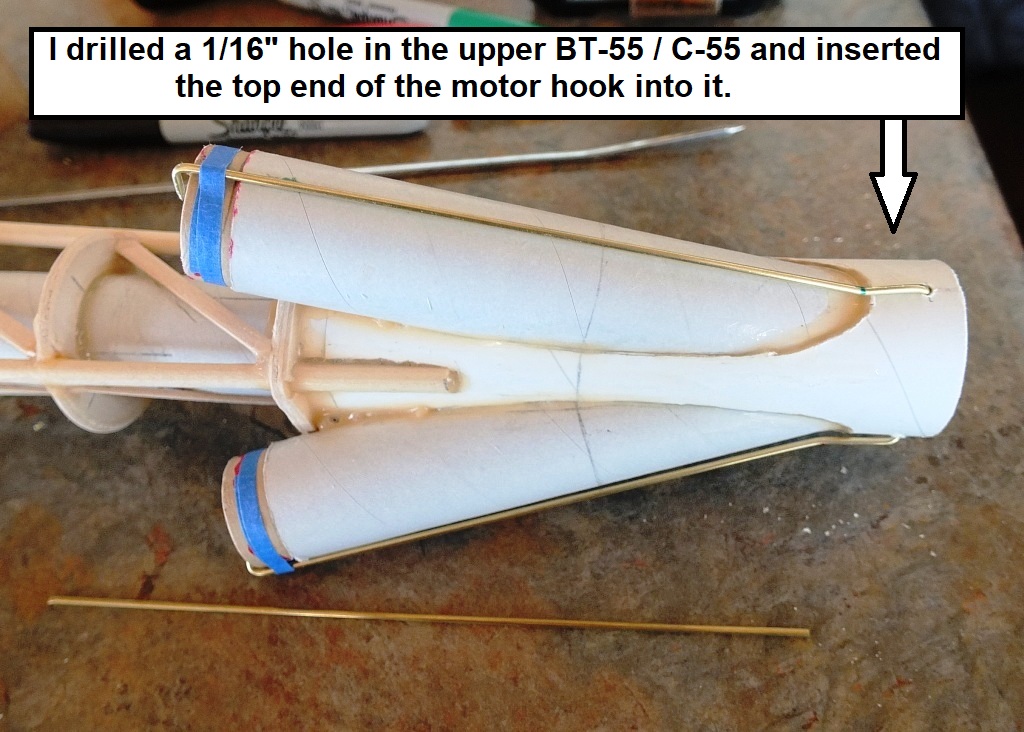

Mercury LES: Motor Retention Rods

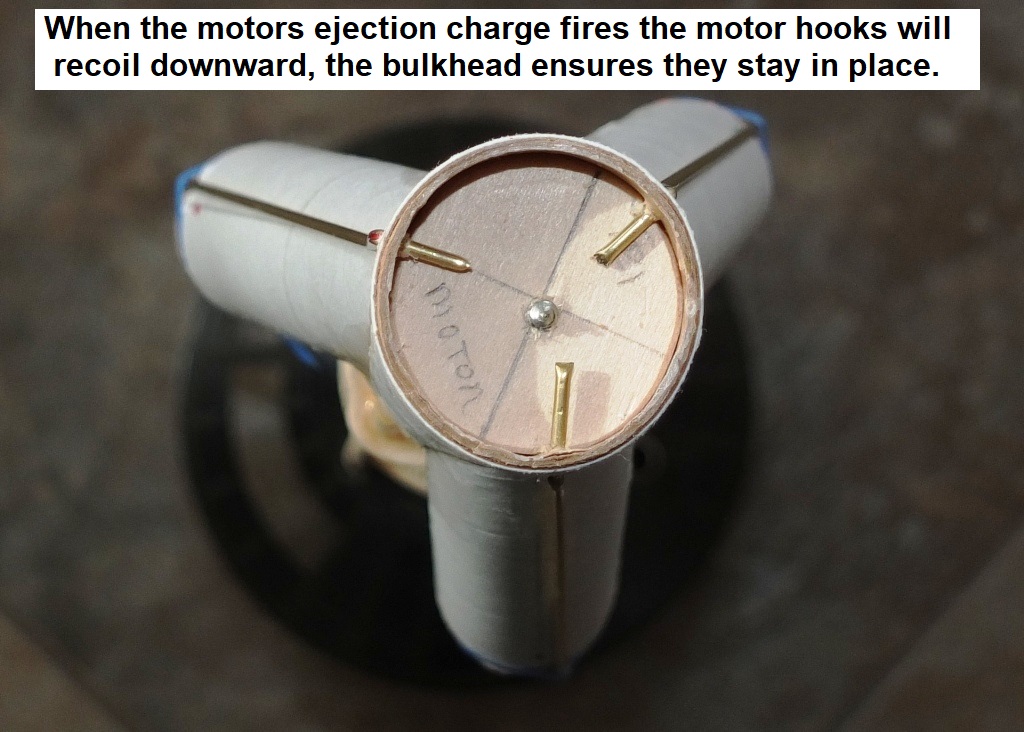

Mercury LES: Motor Retention Rods At Upper Bulkhead

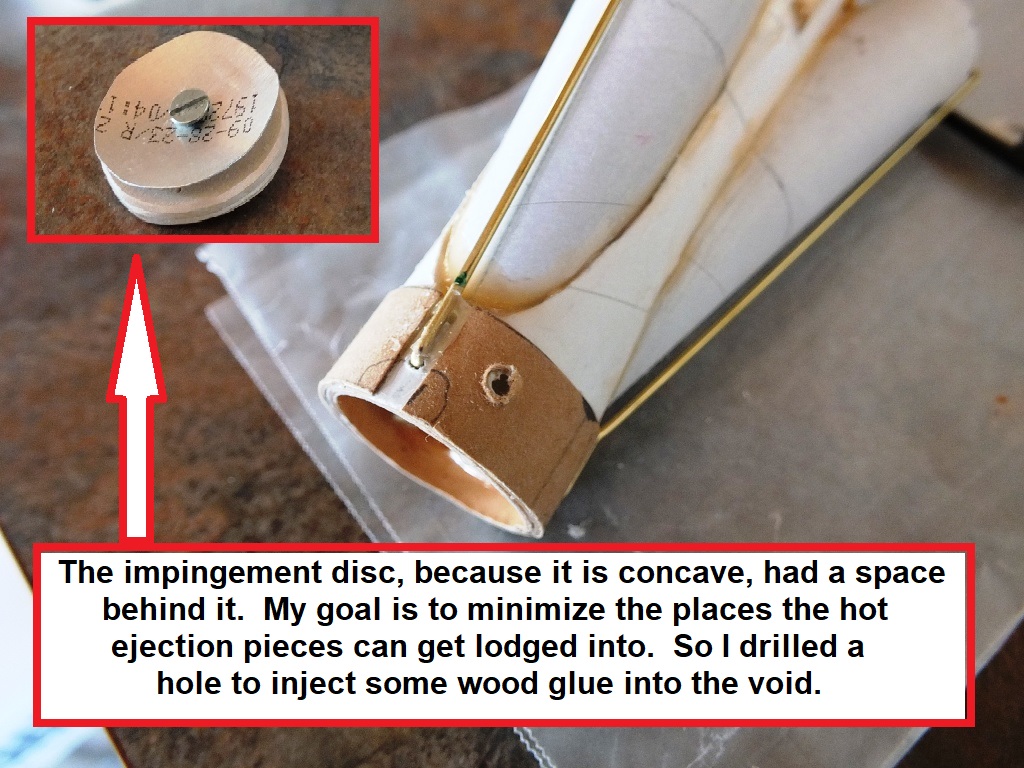

Mercury LES: Motor Impingement Disc

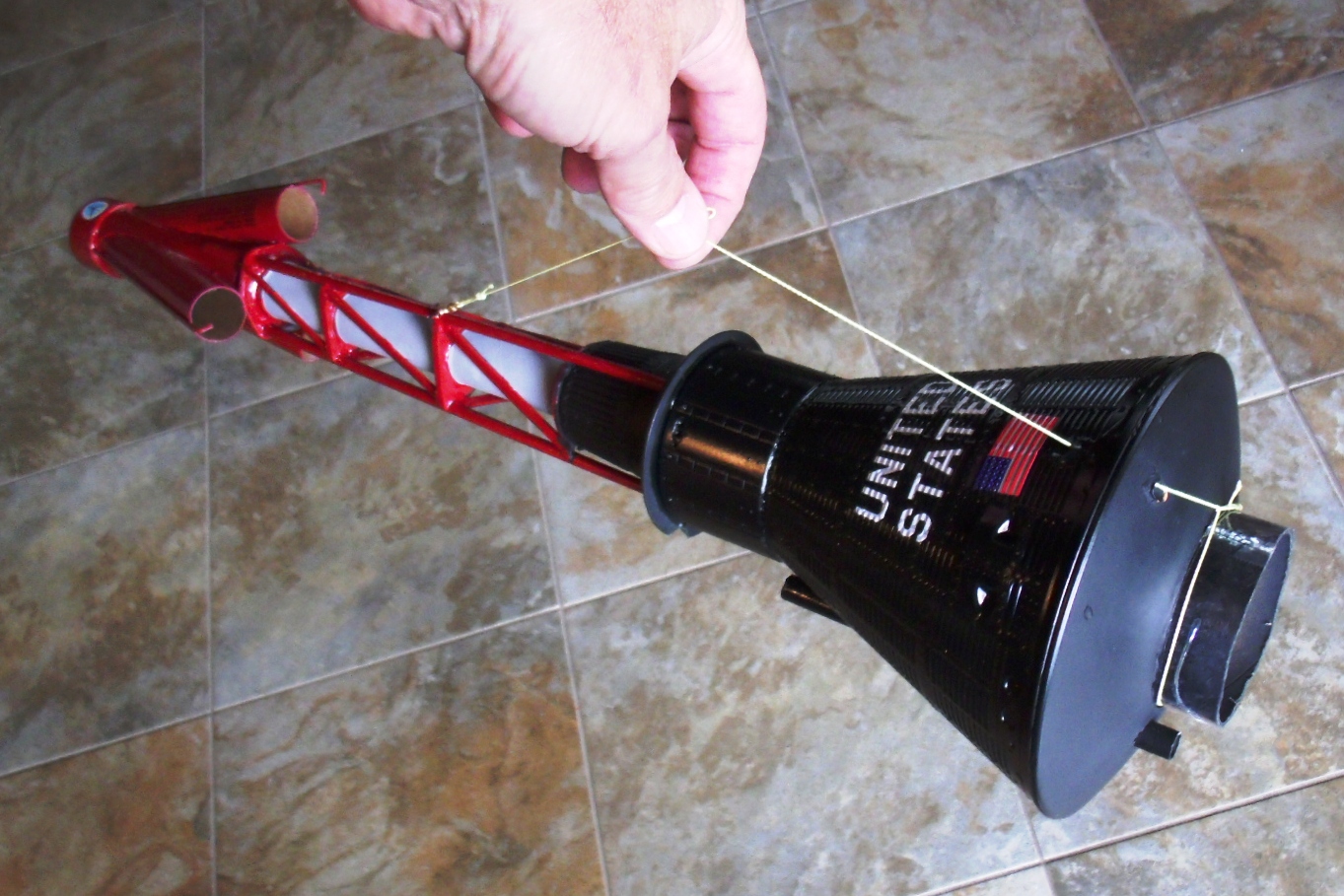

Mercury LES: Recovery Harness
Flights
