Ratter Rocksim Design File

• Manufacturer: Scratch

Comments: specifically designed learning the RATT H70 hybrid, glassing & dual deployment

Designer: Andrew MacMillen - NAR 77472

Download scratch_ratter.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

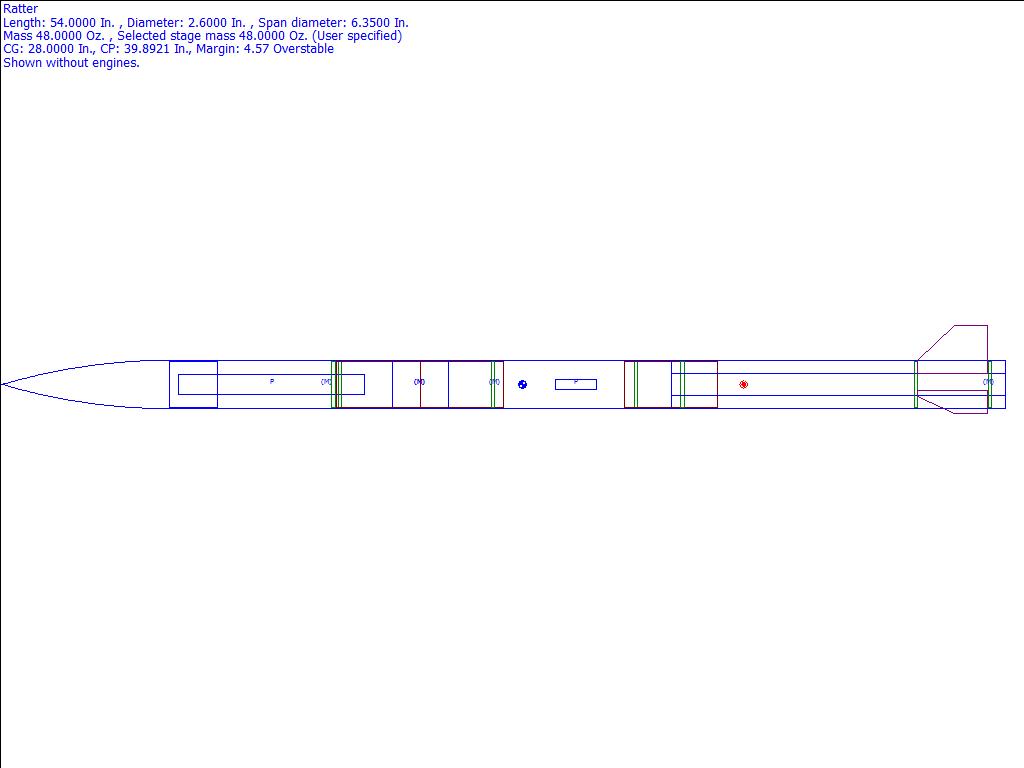

Kit Name: Scratch - Ratter {Scratch}

CG: 28.0000 inches from front
CP: 39.8921 inches from front
Margin: 4.57 Overstable

Parts Breakdown

• Aardvark Rockets American Dream Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Custom Rip stop nylon Parachute (60.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Custom Mass Object
• Public Missiles BP-2.5 Ring
• Public Missiles CBP-2.5 Ring
• Public Missiles Ltd. CT-2.56 Ring
• Custom Mass Object
• Custom Mass Object
• Public Missiles Ltd. CT-2.56 Ring
• Public Missiles CBP-2.5 Ring
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Custom Rip stop nylon Parachute (13.50 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Public Missiles CBP-2.5 Ring
• Public Missiles Ltd. CT-2.56 Ring
• Public Missiles CCR-2.5-1.1 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Public Missiles CR-2.5-1.1 Ring
• Public Missiles CR-2.5-1.1 Ring
• Ratter Freeform Fin Set Freeform Fin Set
• Custom Mass Object
