Afterburner DX-3 Rocksim Design File

• Manufacturer: Scratch

Designer: Douglas Gardei

Download scratch_afterburner_dx_3.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

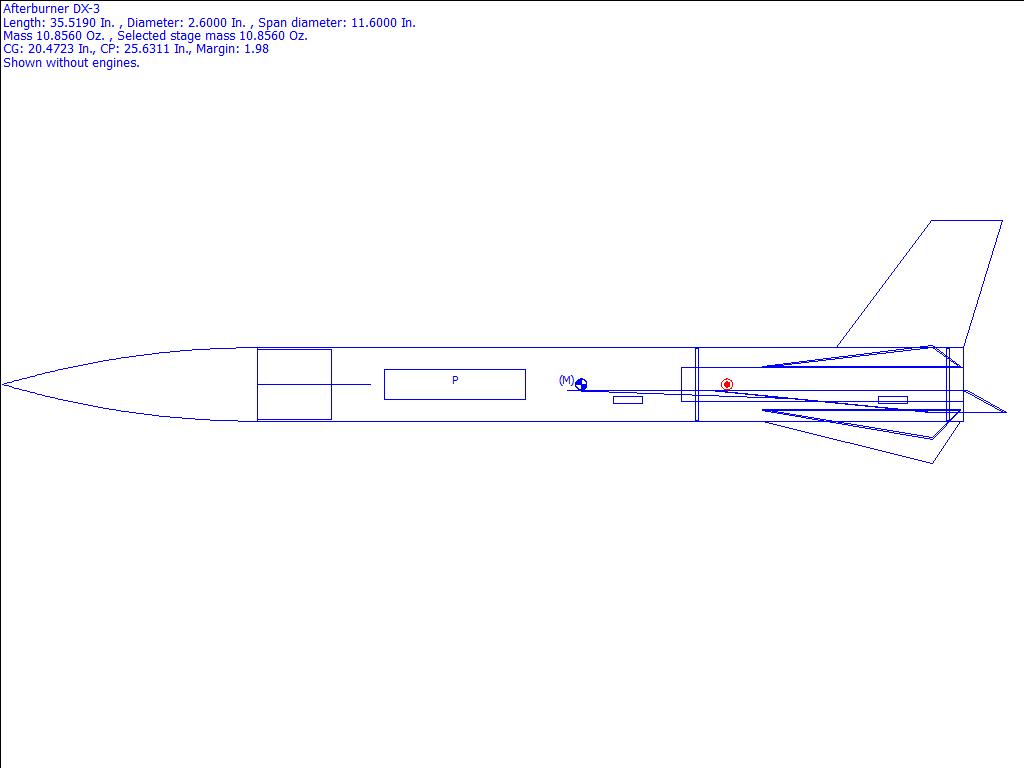

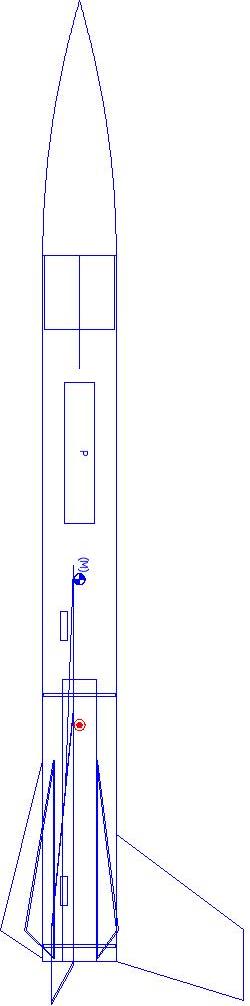

Kit Name: Scratch - Afterburner DX-3 {Scratch}

CG: 20.4723 inches from front
CP: 25.6311 inches from front
Margin: 1.98

Parts Breakdown

• Aardvark Rockets American Dream Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 25.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Afterburner DX-3 Trapezoid Fin S Trapezoid Fin Set
• Afterburner DX-3 Trapezoid Fin S Trapezoid Fin Set
• Afterburner DX-3 Trapezoid Fin S Trapezoid Fin Set
• Afterburner DX-3 Trapezoid Fin S Trapezoid Fin Set
• Afterburner DX-3 Trapezoid Fin S Trapezoid Fin Set
• LOC LOC LL25 Launch Lug
• LOC LOC LL25 Launch Lug
• Custom Mass Object
• Retro Rocket Works Rip stop nylon Parachute (30.00 in)
• Afterburner DX-3 Trapezoid Fin S Trapezoid Fin Set
• Afterburner DX-3 Trapezoid Fin S Trapezoid Fin Set
• Afterburner DX-3 Trapezoid Fin S Trapezoid Fin Set
• Afterburner DX-3 Trapezoid Fin S Trapezoid Fin Set
• Afterburner DX-3 Trapezoid Fin S Trapezoid Fin Set
• Public Missiles CR-2.5-1.1 Ring
• Public Missiles CR-2.5-1.1 Ring
• Afterburner DX-3 Trapezoid Fin S Trapezoid Fin Set
